DJI Zenmuse XT2 9Hz 336x256 Thermal Camera

DJI Zenmuse XT2 9Hz 336x256 Thermal Camera

  • For DJI M200 & M600 Series Drones
  • Up to 12MP Photos & 4K Video
  • FLIR Tau 2 Sensor for Thermal Imaging
  • Less than 50 mK of Sensitivity (NEDT)
  • IP44 Rated Weather Protection
  • Overlay Thermal Data on Visual Footage
  • Lock Onto and Track the Hottest Objects
  • Works with DJI Pilot Android App
  • Brand: DJI Code: 00ZDJIZNMSXT2

    Join the next generation of commercial drone solutions with the XT2.Pairing the FLIR Tau 2 thermal sensor and 4K visual camera withDJI’s leading stabilization and machine intelligence technology,the XT2 quickly transforms aerial data into powerful insightsthat save time, money – and lives.

    Robust Dual-Sensor Thermal Solution

    Housed within a weather resistant encasing is a combination of FLIR's advanced radiometric thermal sensorand 4K visual sensor - all integrated seamlessly with DJI's powerful enterprise drone platforms.

    Transform Data into Insights in Real-Time

    Enabled by a suite of processors and computer vision algorithms, the XT2’s onboardMachine Intelligence helps teams identify what’s important while on-site, instead of after a lengthy processing time.

    Temp Alarm

    Don’t miss a thing with instant notifications when object temperatures exceed pre-set parameters.


    Heat Track

    Capture the most critical information by automatically locking the XT2 onto the hottest object in view.

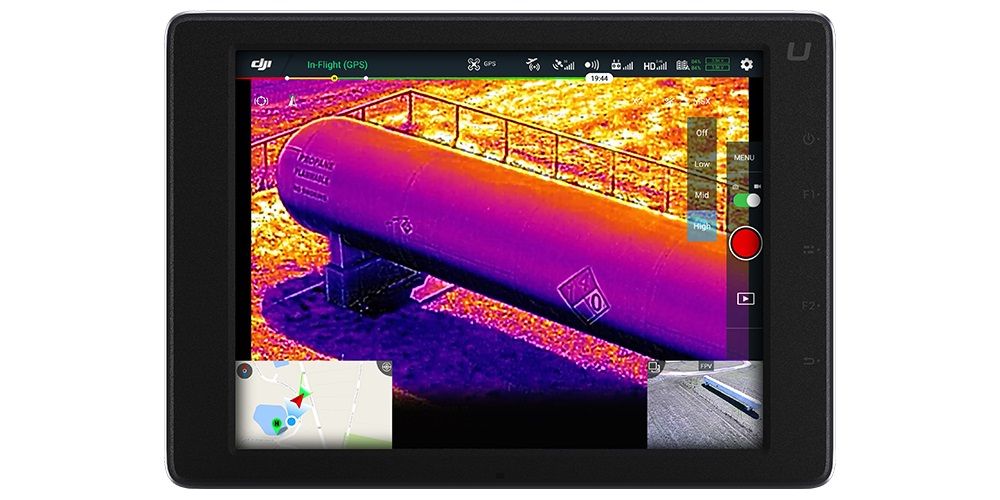

    Quickly interpret data with details from the visual image overlaid on the thermal data stream.


    DJI Zenmuse XT2 9Hz 336x256

    DJI Zenmuse XT2 9Hz 336x256

    DJI Zenmuse XT2 9Hz 336x256

    DJI Zenmuse XT2 9Hz 336x256

    DJI Zenmuse XT2 9Hz 336x256



    See the unseen. FLIR thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.

    DJI Zenmuse XT2 9Hz 336x256

    DJI Zenmuse XT2 9Hz 336x256

    DJI Zenmuse XT2 9Hz 336x256

    DJI Zenmuse XT2 9Hz 336x256

    Ready for Action

    M200 Series and M600 Pro Compatible

    With a quick turn of the wrist the Zenmuse XT2 secures onto DJI’s industry-leading M200 Series and M600 Pro drones to provide pilots a direct view and control of this powerful thermal sensor.

    When the XT2 is mounted onto a M200 Series drone, pilots have a combined solution that extends the operation window for drone technology - letting pilots fly confidently in lowlight conditions, through a strong breeze or in light rain.

    Utilizing the M210 drone models, pilots can build more robust drone solutions around the XT2 over time by adding zoom cameras, additional onboard computers and other payloads to fit a variety of specialized missions.

    DJI Zenmuse XT2 9Hz 336x256

    Purpose-Built Application

    DJI Pilot

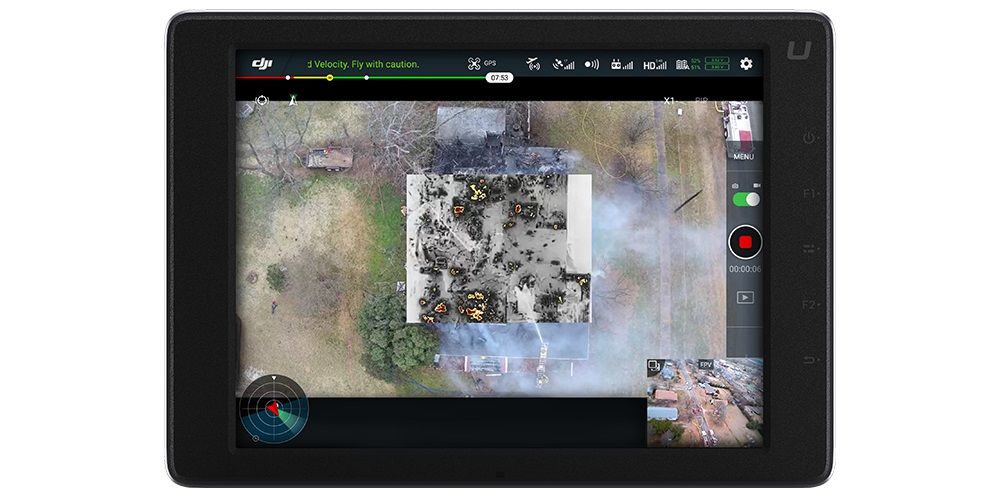

    Professional Flight ControlDJI Pilot is a robust Android app developed specifically for enterprise-users to unleash the power of their DJI drones. With development made specifically for the XT2, DJI Pilot optimizes your flight and aerial imaging process.

    • Access and adjust Spotlight Pro flight modes
    • Select area and parameters for Temp Alarm
    • On-screen temperature measurements
    • Access to color palette, isotherm, and other thermal settings

     DJI Zenmuse XT2 9Hz 336x256


    Name Zenmuse XT2
    Dimensions With 25 mm lens: 123.7×112.6×127.1 mm
    With other lens: 118.02×111.6×125.5 mm


    Thermal Imager Uncooled VOx Microbolometer
    FPA/Digital Video Display Formats 640×512
    Digital Zoom 640×512: 1x, 2x, 4x, 8x
    336×256: 1x, 2x, 4x
    Pixel Pitch 17 μm
    Spectral Band 7.5-13.5 μm
    Full Frame Rates 30 Hz
    Exportable Frame Rates <9 Hz
    Sensitivity (NEdT) <50 mk @ f/1.0
    Scene Range (High Gain) 640×512: -25° to 135℃
    336×256: -25° to 100℃
    Scene Range (Low Gain) -40° to 550℃
    File Storage MicroSD card*
    Photo Format JPEG, TIFF, R-JPEG
    Video Format 8 bit: MOV, MP4 14 bit: TIFF Sequence, SEQ**


    Angular Vibration Range ±0.01°
    Mount Detachable
    Controllable Range Tilt: +30° to -90°
    Pan: ±320°
    Mechanical Range Tilt: +45° to -130°
    Pan: ±330°
    Roll: -90° to +60°
    Max Controllable Speed Tilt: 90°/s
    Pan: 90°/s


    Sensor 1/1.7" CMOS
    Effective Pixels: 12 M
    Lens Prime lens
    Focus at 8 mm
    FOV 57.12°× 42.44°
    Digital Zoom 1x, 2x, 4x, 8x
    Photo Formats JPEG
    Video Formats MOV, MP4
    Video Resolutions 4K Ultra HD: 3840×2160 29.97p
    FHD: 1920×1080 29.97p
    Working Modes Capture, Record, Playback
    Still Photography Modes Single Shot
    Burst Shooting(3/5 frames)
    Interval (2/3/4/7/10/15/20/30 sec)
    Video Caption Supported
    Anti-flicker Auto, 50 Hz, 60 Hz
    Storage MicroSD card
    Max capacity: 128 GB. UHS-3 required
    Recommended model: Sandisk Extreme 16/32 GB UHS-3 microSDHC
    Sandisk Extreme 64/128 GB UHS-3 microSDXC
    Supported File System FAT 32 (≤32GB), exFAT (>32GB)


    Thermal Lens Models 9 mm, 13 mm, 19 mm, 25 mm
    640×512 FoV, iFoV N/A, f/1.25 45°×37° 1.308 mr, f/1.25 32°×26° 0.895 mr, f/1.1 25°×20° 0.680 mr
    336×256 FoV, iFoV f/1.25 35°×27° 1.889 mr, f/1.25 25°×19° 1.308 mr, f/1.25 17°×13° 0.895 mr, N/A
    Min Focus Distance 3.2 cm, 7.6 cm, 15.3 cm, 30 cm
    Hyperfocal Distance 2.1 m, 4.4 m, 9.5 m, 21m
    Hyperfocal Depth of Field 1.1 m, 2.2 m, 4.8 m, 11m
