Athlon Ares BTR GEN 2 2.5-15x50mm FFP APRS5 30mm MIL Illuminated Riflescope
APRS5 FFP IR MIL 2.5X

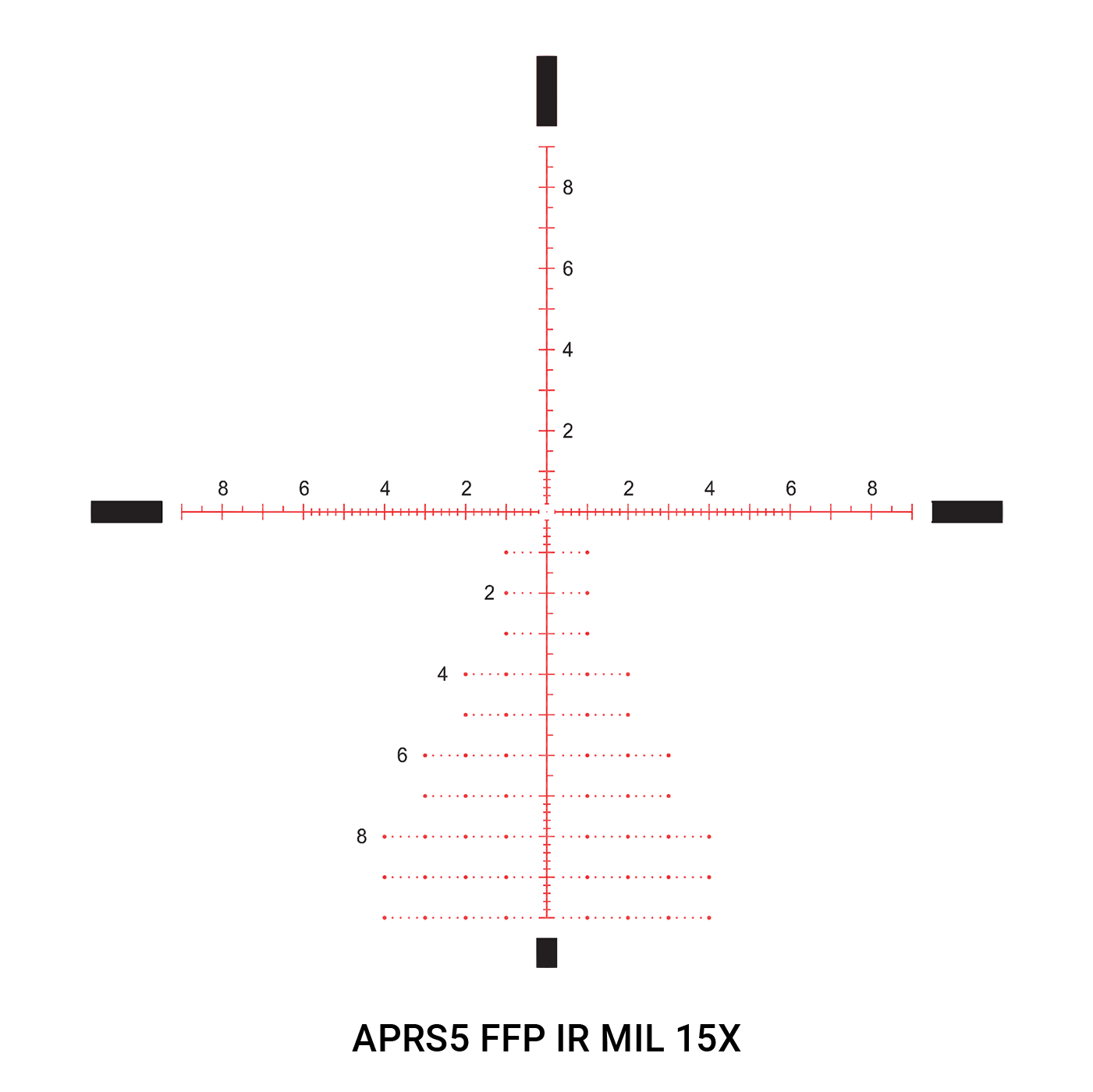

APRS5 FFP IR MIL 15X
Magnification |
2.5-15 |
Objective Lens Diameter |
50 mm |
Reticle |
APRS5 FFP IR MIL, Glass Etched illuminated |
Surface Finish |
Matte |
Lens Coating |
Wide Band Fully Multicoated |
Extra Coating |
Xtra Protective Coating |
Tube Material |
6061 Aluminium |
Tube Diameter |
30 mm |
Exit Pupil |
11.1-3.3 mm |
Eye Relief |
3.9" |
Field of View @100 yards |
41.8-6.8 ft |
Click Value |
0.1 mil |
Adjustment range per rotation |
10 mil |
Total Elevation Adjustment |
29 mil |
Total Windage Adjustment |
29 mil |
Turret Style |
Exposed Direct Dial |
Parallax Adjustment |
Side Focus – 10 yards to infinity |
Purging Material |
Argon |
Length |
13.8 " |
Weight |
27.3 oz |
Brochures | |
---|---|
AT212012 - Brochure | Product Manuals |
Athlon Ares BTR GEN 2 2.5-15x50mm FFP APRS5 30mm MIL Illuminated Riflescope - Product Manual |
Brand: Athlon Optics |
Code: AT212012
APN: 813869021976 |
Supplier Code: 212012
Brand: Athlon Optics |
Code: AT212012
APN: 813869021976 |
Supplier Code: 212012
