Athlon Ares ETR UHD 3-18x50mm FFP APLR6 34mm MOA Illuminated Riflescope
APRS6 FFP IR MIL 4.5X
APRS6 FFP IR MIL 29X
Magnification |
3-18 |
Objective Lens Diameter |
50 mm |

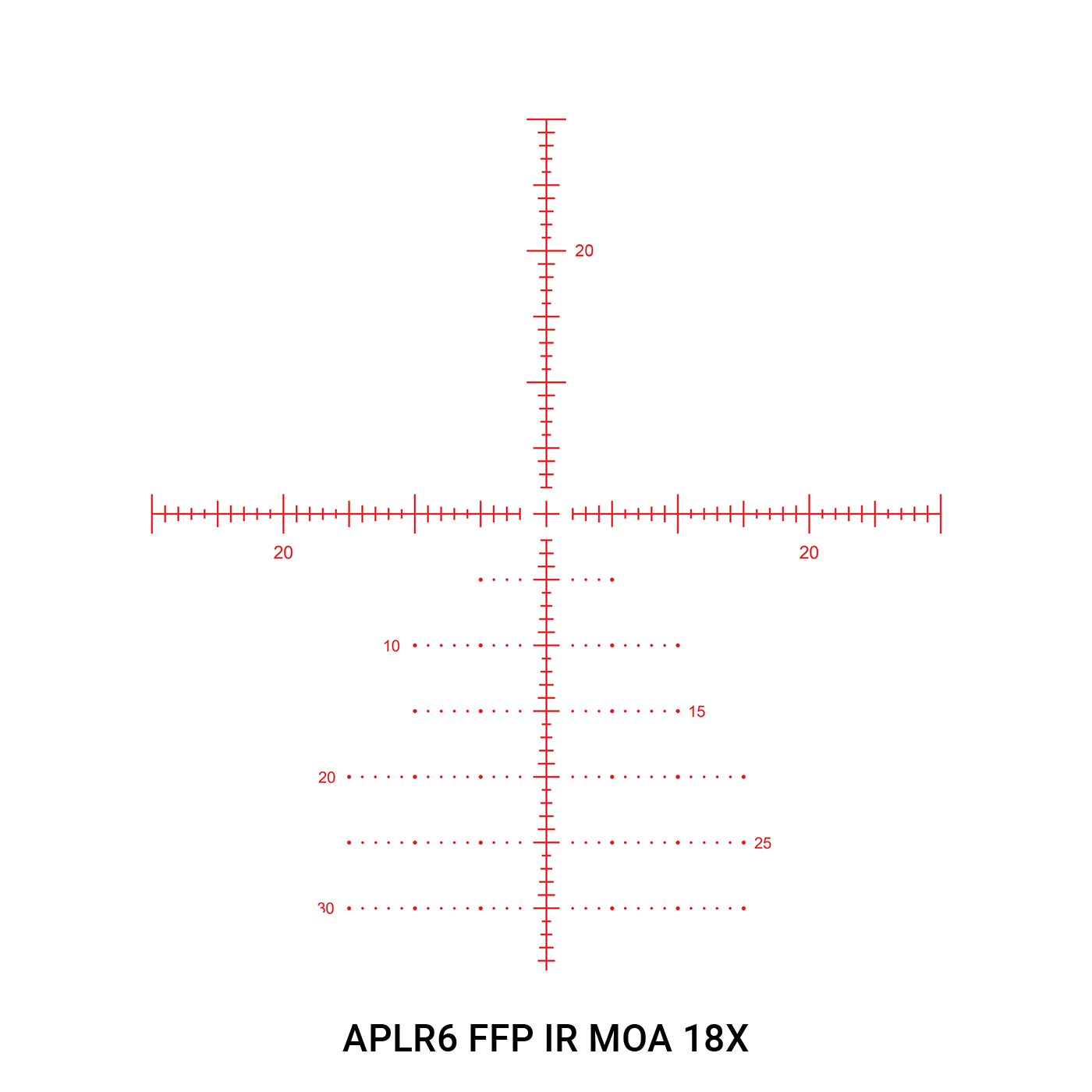

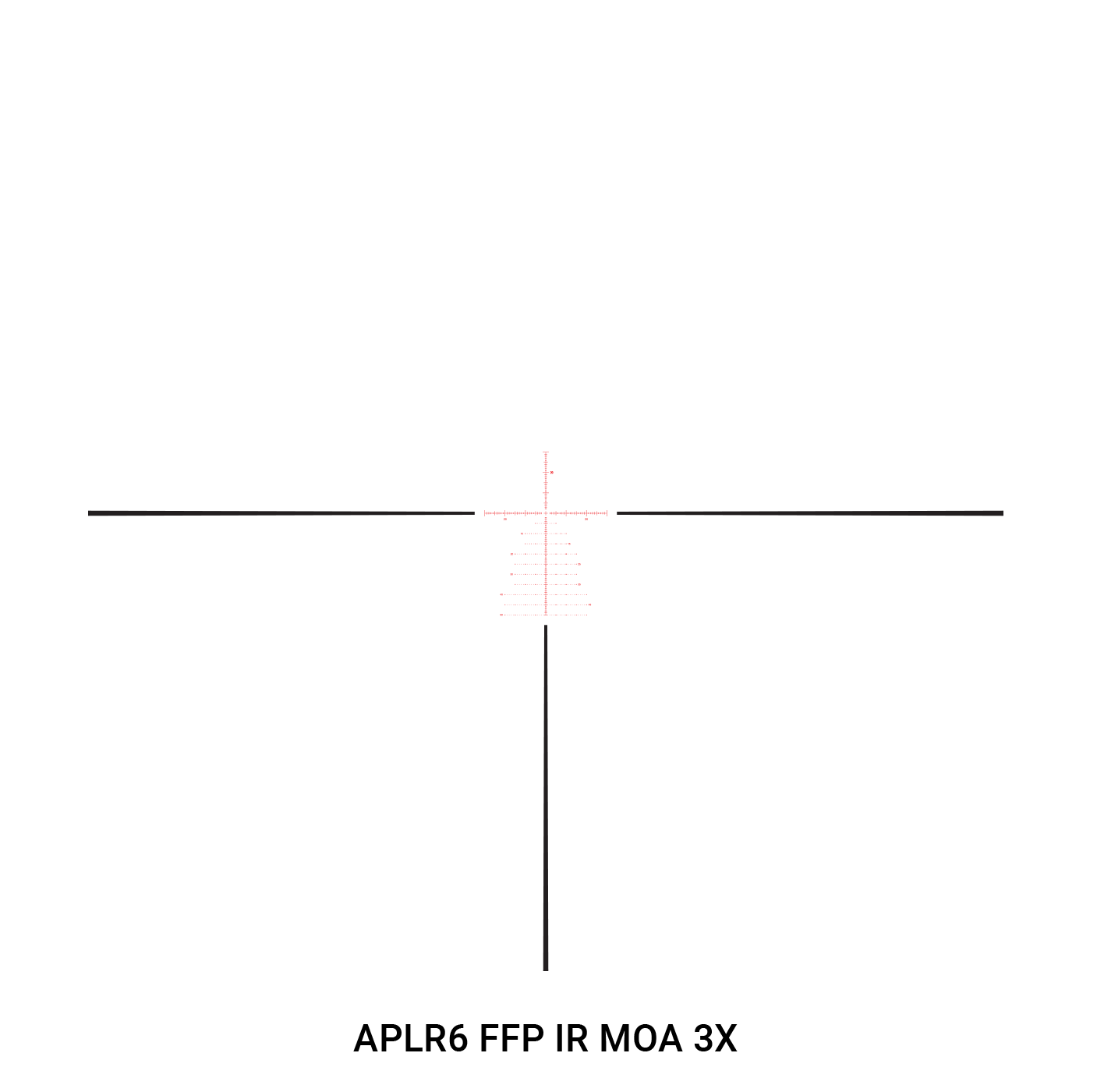

Reticle |
APLR6 FFP IR MOA, Glass Etched |
Surface Finish |
Matte |
Lens Coating |
Advanced Fully Multi-Coated |
Extra Coating |
Xtra Protective Coating |
Tube Material |
Aircraft Grade Aluminium |
Tube Diameter |
34 mm |
Eye Relief |
3.7" |
Field of View @100 yards |
39.2-6.65 ft |
Click Value |
.25 MOAL |
Adjustment range per rotation |
25 MOA |
Total Elevation Adjustment |
110 MOA |
Total Windage Adjustment |
80 MOA |
Turret Style |
Exposed Elevation/Locking Windaget |
Parallax Adjustment |
Side Focus – 10 yards to infinity |
Purging Material |
Argon |
Length |
14.2" |
Weight |
31.4 oz |
Brochures | |
---|---|
AT212105 - Brochure | Product Manuals |
Athlon Ares ETR UHD 3-18x50mm FFP APLR6 34mm MOA Illuminated Riflescope - Product Manual |
Brand: Athlon Optics |
Code: AT212105
APN: 813869022232 |
Supplier Code: 212105
Brand: Athlon Optics |
Code: AT212105
APN: 813869022232 |
Supplier Code: 212105
This product may contain or use a button cell battery
If swallowed, a lithium button battery can
cause severe or fatal injuries within 2 hours.
Keep batteries out of reach of children.
If you think batteries may have been
swallowed or placed inside any part of the
body, seek immediate medical attention.
At a glance
