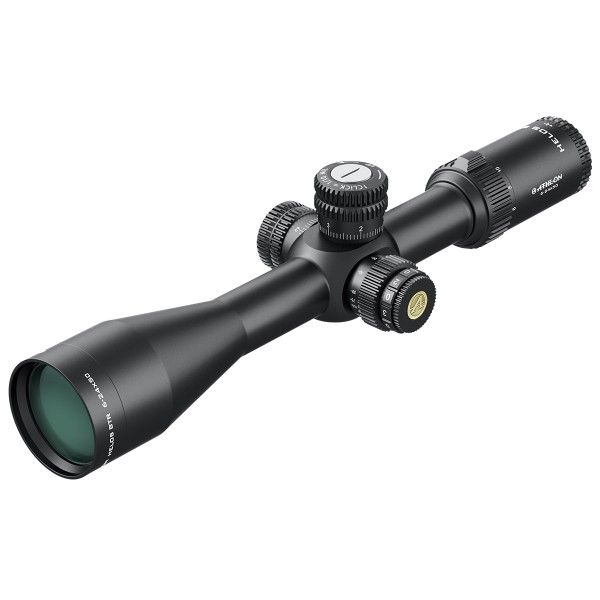

Athlon Helos BTR 6-24x50 30mm APMR FFP IR-MIL Riflescope **

Loading
  • Athlon Helos BTR 6-24x50 30mm APMR FFP IR-MIL Riflescope **
  • Athlon Helos BTR 6-24x50 30mm APMR FFP IR-MIL Riflescope **
  • Athlon Helos BTR 6-24x50 30mm APMR FFP IR-MIL Riflescope **

  • APMR, 1st Focal Plane
  • 30mm Single-Piece Maintube
  • 1/10 MRAD IPC, 18 MRAD Windage/Elevation
  • Exposed, Direct Dial Turrets
  • 6061-T6 Aluminum Alloy Housing
  • Fully Multi-Coated Lenses
  • XPL Anti-Scratch Coating Repels Dirt/Oil
  • 50mm-Wide Objective Lens
  • Waterproof & Fogproof/Argon-Purged
  • Parallax-Free: 10 yd to Infinity
  • Unconditional life time warranty against manufacturing and accidental damage.

When you hear first focal plane rifle scope, the best rifle scopes on the market come to mind. With crisp locking turrets, advanced fully multi-coated optics, and built from a one-piece tube made of aircraft-grade 6061-T6 aluminum you would expect it to come with a high price tag. That is not the case. This is exactly why we introduced the Helos BTR family. Feature rich but won’t break the bank.



First Focal Plane Reticle

First focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out. These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.

Locking Turrets

Locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to next during your competition or putting them away for your next hunting trip.

Illuminated Reticle

The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.

Etched Glass Reticle

Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil

Advanced Fully Multicoated

Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses

6061 T6 Aluminum

The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.

Heat Treated One Piece Tube Construction

Heat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product

Waterproof

Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater

Fog proof

Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside

Shockproof

Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.

Argon Purged

Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability .

*Unconditional life time warranty to the original purchaser. This covers all manufacturing and accidental damage. It does not cover wilful or cosmetic damage. Items will be repaired or replaced under warranty.

Magnification 6-24x
OBJECTIVE LENS DIAMETER 50 mm
Reticle APMR reticle 1st focal plane
Field of View 16.7 - 4.5' at 100 yd / 5.5 - 1.5 m at 100 m
Parallax Correction 9.1 m to infinity
Eye Relief 9.9 cm
Exit Pupil Diameter 8.3-2.1 mm
Impact Resistance 1000g(for up to 1000 times)
Impact Point Correction 1/10 MRAD
Windage/Elevation Adjustment 18 MRAD 6 MRAD per turn
Weatherproofing Waterproof and fogproof, argon-purged
Dimensions 35.8 cm
Weight 844.8 g

Brochures
AT214107 - Brochure
Product Manuals
Athlon Helos BTR 6-24x50 30mm APMR FFP IR-MIL Riflescope ** - Product Manual

  • Athlon Optics 6-24x50 Helos BTR SF Riflescope (APMR Illuminated Reticle, Matte Black)
  • CR2032 Battery
  • 2 x Flip-Up Lens Covers
  • Lens Cloth
  • Limited Lifetime Warranty

Related Categories 6-30x First Focal Plane MIL Illuminated 30mm

Brand: Athlon Optics | Code: AT214107
APN: 813869021112 | Supplier Code: 214107

Brand: Athlon Optics | Code: AT214107
APN: 813869021112 | Supplier Code: 214107

This product may contain or use a button cell battery
If swallowed, a lithium button battery can cause severe or fatal injuries within 2 hours. Keep batteries out of reach of children. If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention.
