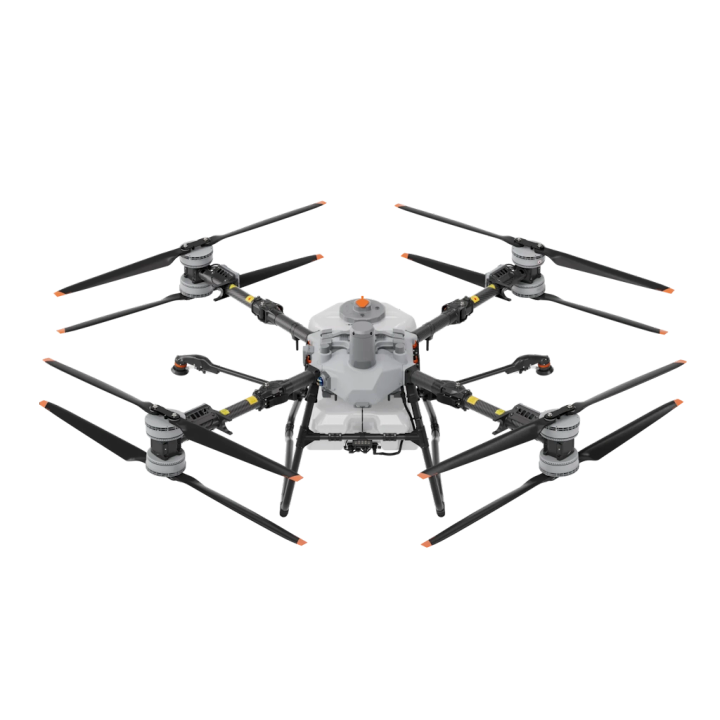

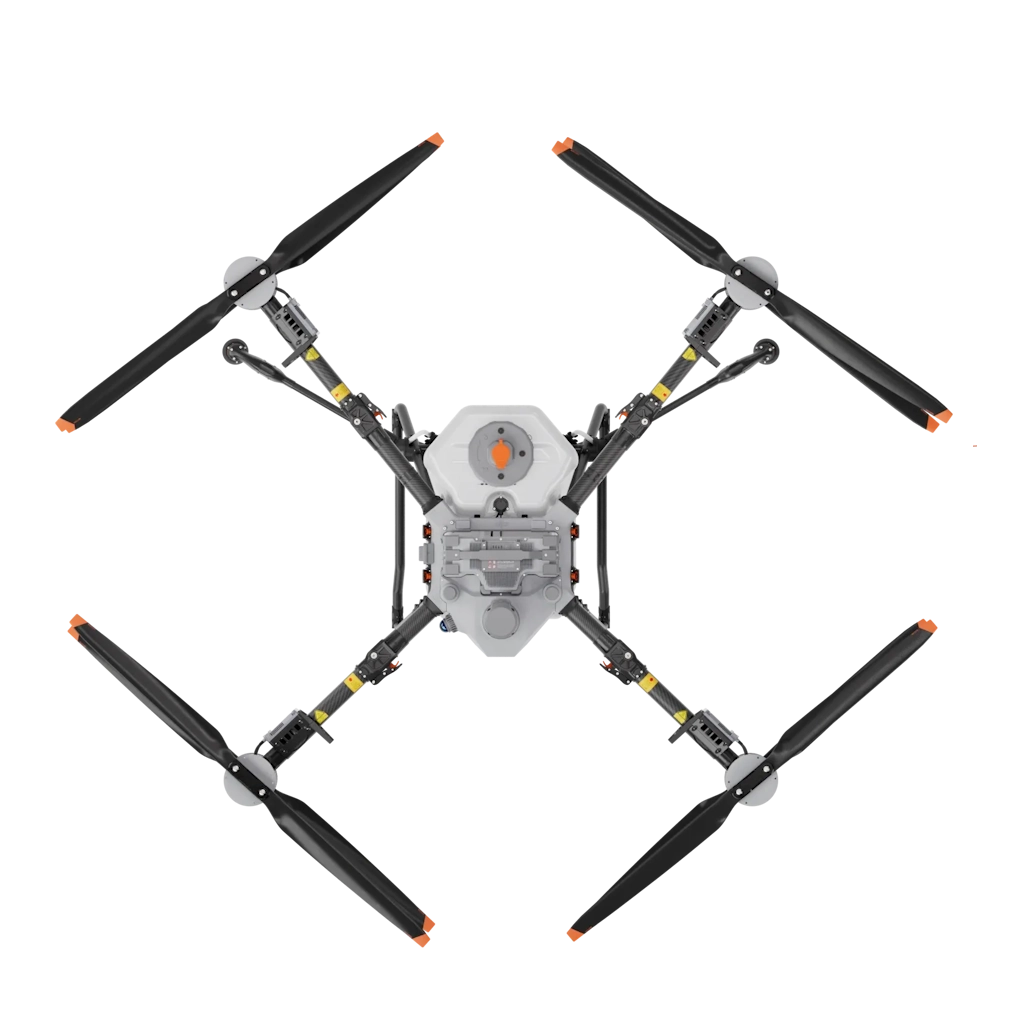

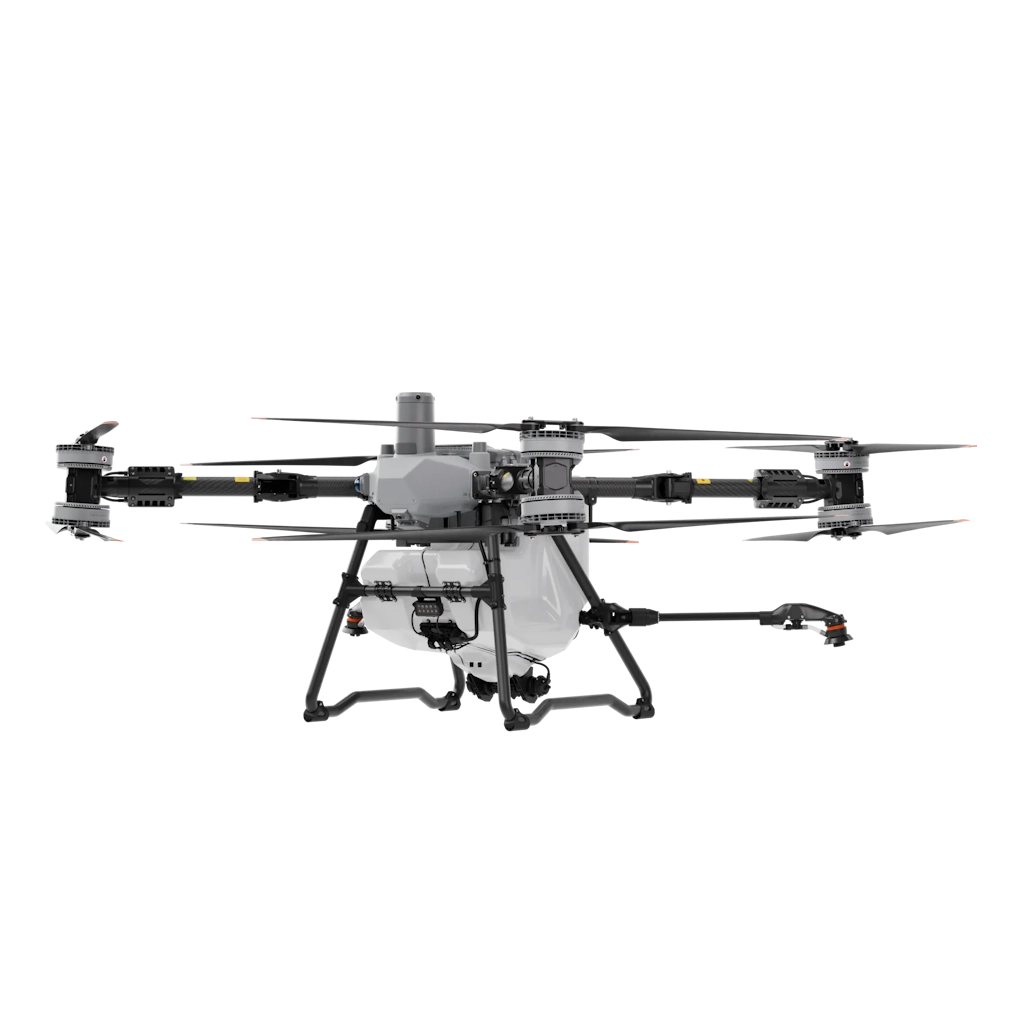

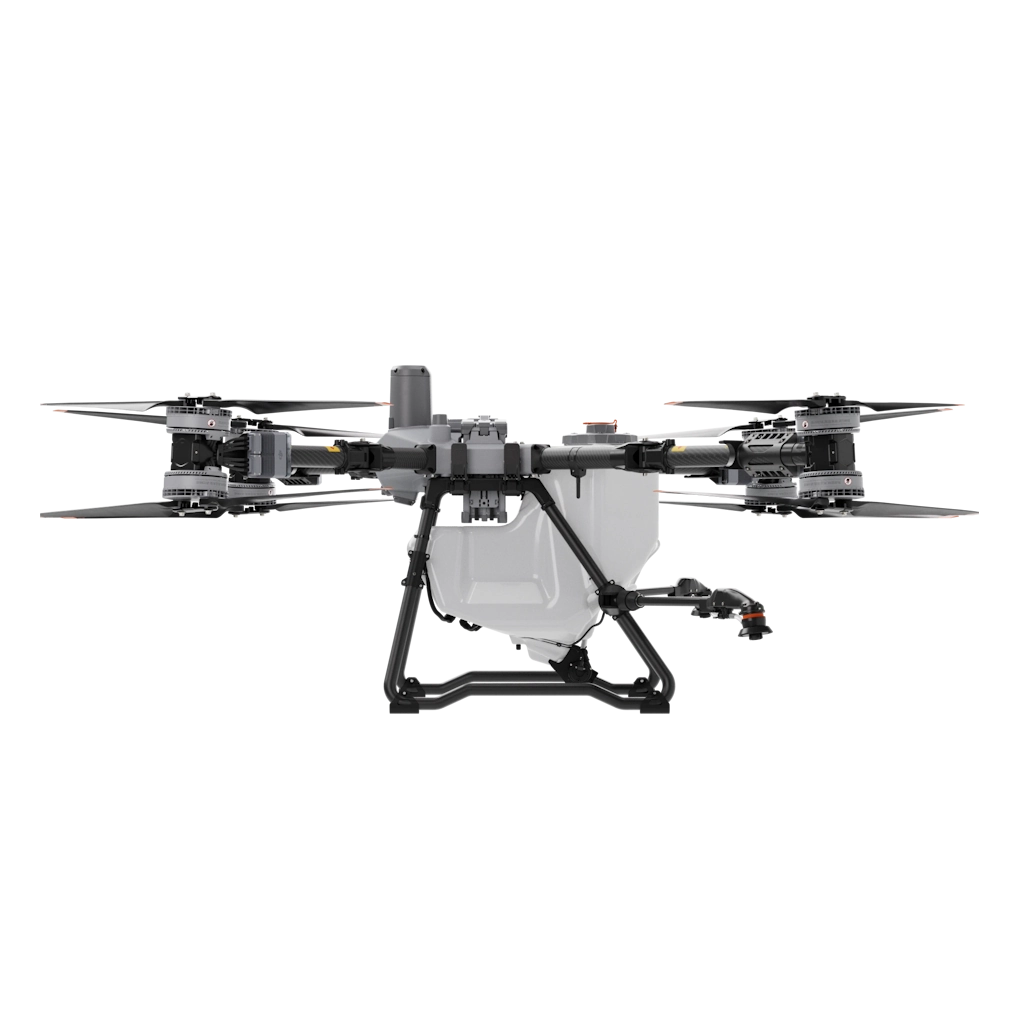

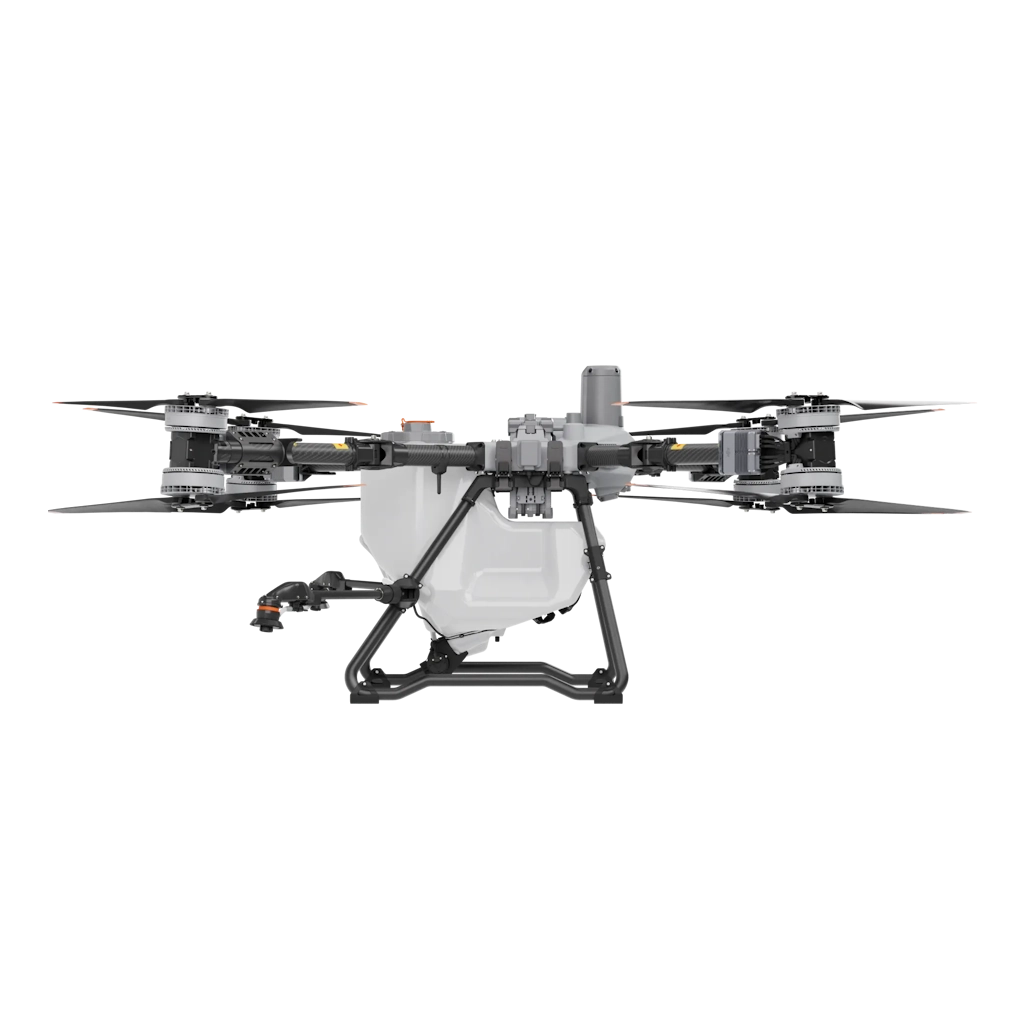

DJI Agras T100 Intelligent Airframe incl. T100 Spraying System w/ Air-Cooled Heat Sink
- DJI T100 is DJI's high capacity lift agriculture drone.
- Massive capacity for large scale, ultra-efficient spraying and spreading activities.
- LiDAR, Penta-Vision, radar, and AR-assisted obstacle detection.
- 100 kg lifting with intelligent control.
| T100 Aircraft | |
| Weight | Weight for spraying: 75 kg (standard with 2 nozzles) Weight for spraying: 77 kg (optional with 4 nozzles) Weight for spreading: 75 kg (equipped with spreading system) Weight for lifting: 65 kg (equipped with lifting system) Weight for lifting: 90 kg (equipped with dual-battery lifting system) |
| Max Takeoff Weight | Max takeoff weight for spraying: 175 kg (standard with 2 nozzles) Max takeoff weight for spraying: 177 kg (optional with 4 nozzles) Max takeoff weight for spreading: 175 kg (equipped with spreading system) Max takeoff weight for lifting: 165 kg (equipped with lifting system) Max takeoff weight for lifting: 170 kg (equipped with dual-battery lifting system) |
| Max Diagonal Wheelbase | 2330 mm (diagonal) |
| Dimensions | 3220 mm × 3224 mm × 975 mm(arms and propellers unfolded) 1820 mm × 1840 mm × 975 mm(arms unfolded and propellers folded) 1105 mm × 1265 mm × 975 mm(arms and propellers folded) |
| Hovering Accuracy Range (with strong GNSS signal) | RTK Enabled: ±10 cm (horizontal), ±10 cm (vertical) RTK not enabled: Horizontal ± 0.6 m, vertical ± 0.3 m |
| Max Configurable Flight Radius | 2 km |
| Operating Temperature | 0 °C to 40 °C |
| Max Wind Resistance | <6 m/s |
| Propulsion System - Motors | |
| Stator Size | 155 × 16 mm |
| KV | 60 rpm/V |
| Propulsion System - Propellers | |
| Material | Carbon Fiber Composite |
| Dimensions | 62 inches |
| Quantity | 8 pairs |
| Spraying System | |
| Model | LS100 |
| Dimensions | 880 mm × 870 mm × 810 mm (spray rod folded) 1020 mm × 1930 mm × 810 mm (spray rod unfolded) |
| Spraying System - Spray Tank | |
| Material | HDPE |
| Volume | 100L |
| Opertating Payload | 100kg |
| Spraying System - Sprinklers | |

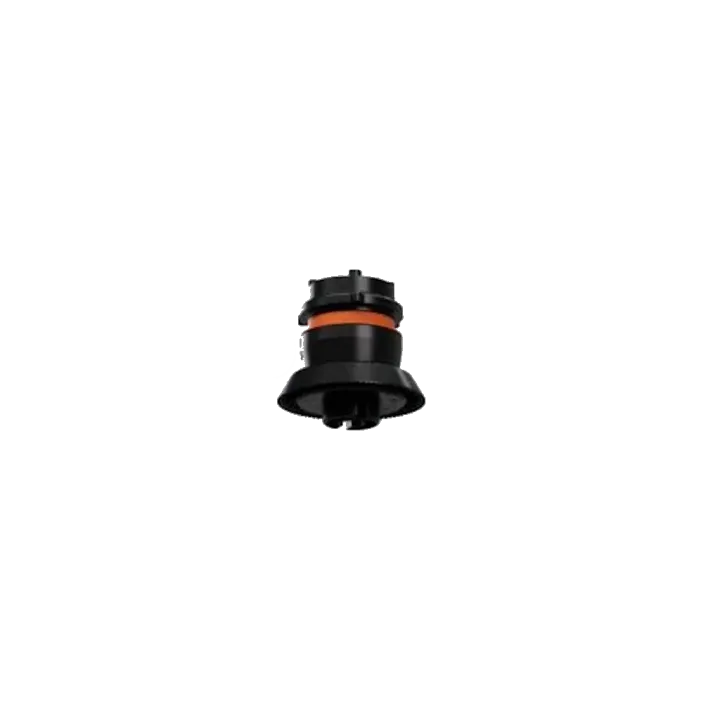

| Model | LX07550SX (Standard Nozzle) / LX09550SX (Optional Mist Nozzle) |
| Quantity | 2 (Standard) / 4 (Optional) |
| Nozzle Distance | 1834 mm (Two Nozzles / Four Nozzles Outermost) |
| Droplet Size | 50 - 500 μm |
| Effective Spray Width | 5 - 13 m |
| Spraying system - Delivery Pumps | |
| Type | Impeller Pump (Magnetic Drive) |
| Quantity | 2 |
| Max Flow Rate | 30 L/min (Standard 2 nozzles), 40 L/min (Optional 4 nozzles) |
| Spreading Load | |
| Dimensions | 900 mm × 820 mm × 920 mm |
| Compatible Material Diameter | Standard configuration: Extra-large auger: 0.5 mm - 10 mm granules (fertilizer, wheat, feed, etc.) Medium auger: 4 mm - 6 mm granules (rice) Optional: Large auger: 4 mm - 10 mm granules (rice, fertilizer) Small auger: 0.5 mm - 4 mm granules (rapeseed, granular herbicides, granular insecticides) |

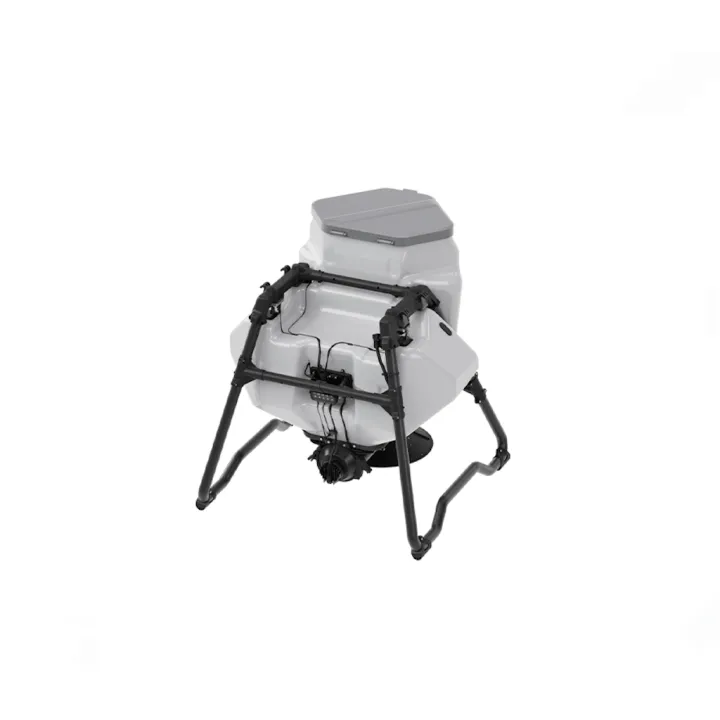

| Spreading System 4.0 | |
| Spreading Tank Volume | 150 L |
| Spreader structure type | Centrifugal Disc |
| Discharge Structure Type | Screw Feeder Feeding |
| Max Discharge Rate | 400 kg/min (compound fertilizer) |
| Max load inside the spreading operation box | 100kg |
| Effective spreading width | 3-10m |
| 400 kg/min (compound fertilizer) | |
| Dimensions | Standard payload: 805 mm × 764 mm × 669 mm |
| Lifting System | |
| Load capacity | 100kg |
| Lifting Cable Length | 10m |
| Recommended cable length | 10-15m |
| Operating Temperature | 0 °C to 40 °C |
| Dual Battery Lifting System | |
| Dimensions | 805 mm × 960 mm × 669 mm |
| Load capacity | 80kg |
| Lifting Cable Length | 10 m (standard configuration) |
| Emergency Escape Mode | Cable Fuse Disconnection and Escape |
| Recommended cable length | 10-15m |
| Operating Temperature | 0 °C to 40 °C |
- DJI 100 aircraft
- DJI Spray tank for T100
- Leg assembly
- DJI RC Plus Remote Controller
- Remote Controller Strap
- Tool box
- USB-C Cable
- Screws & Tools
- Cooling station (for charging batteries)
