DJI Zenmuse X7 Camera (Lens Excluded)
- Detachable Gimbal Mount
- 6K (6016 x 3200) Video Capture
- 24MP Still Photos
- Single, Burst, Auto, & Interval Photos
- microSD and CINESSD Support
Cinematic Vision Rising
The Zenmuse X7 is a compact Super 35 camera with an integrated gimbal made for hight-end filmmaking that delivers stunning resoultion and image quality.
Its Compatibility with the Insipre 2 offers the next-level professional aerial cinematography.
A 24 MP CMOS sensor rated at 14 stops of dynamic range preserves astonishing detail and offers both 6K cinemaDNG and 5.2K Apple ProRes with support for continuous RAW burst shooting at 20 fps and 24MP stills.
Engineered for Excellence
The X7 uses a Super 35 Sensor and its high readout speed supports RAW output at 6k/30 fps and 3.9/59.94 fps.
A sensor this size offers a higher sensitivity to light and 14 stops of dynamic range - much wider than the 12.8 stops featured on the Zenmuse X5S.
DJI DL - Mount System
Taking advantages of new FSI-Cu technology, the X7's Sensor features thinner interconnection, allowing light to reach the sensing area via a larger incident angle for increased photo sensitivity.

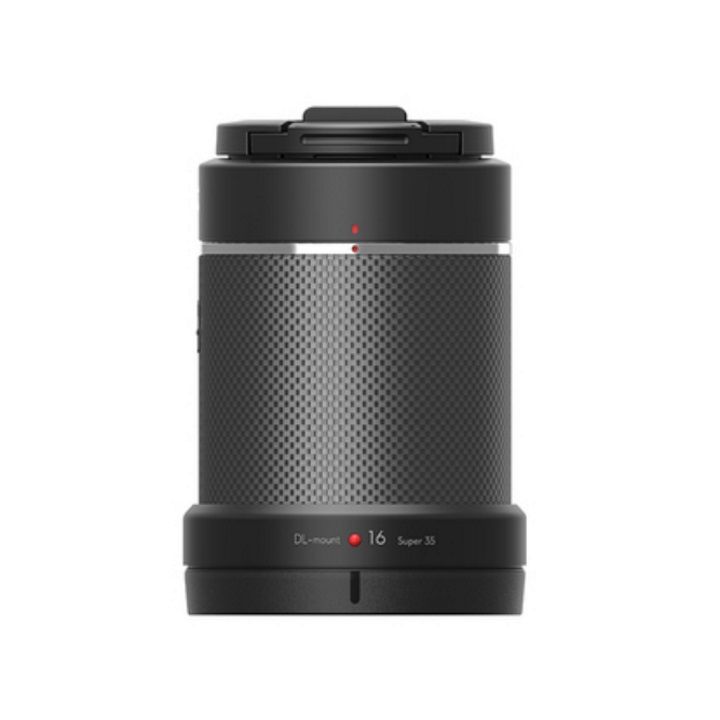

DL lenses
DJI offers four prime lenses for the DL-Mount system, with focal lenghts ranging from 1650 mm and resolutions of up to 8k. made of light carbon fiber amd designed by world-leading optics teams, the four lenses have been embedded with advanced technologies crafted specifically for the X7's high-end image sensor.
Game Changer from Shoot to finish
The unlock the wide-ranging possibilities of DJI prodessional imaging systems and open more room for post-processing aerial photography in filmmaking, DJI is proud to introduce the brand new DJI cinema color System.
We are now working with multiple professional post-processing software companies to include D-Log and D-Gamut in their software to achieve universal compatibility with mainstream cinemativ workflows as soon as possible.
Camera
| Sensor Size | Still: 0.9 x 0.6" (23.5 x 15.7 mm) Video: 0.9 x 0.5" (23.5 x 12.5 mm), max recording area |
| Lens Mount | DL |
| Photo Resolution | 24 MP |
| Video Resolution | Aspect Ratio 17:9 Cinema-DNG: 6K: 6016×3200, 23.976/24/25/29.97/30p, 12-bit, full FOV C4K: 4096×2160, 23.976/24/25/29.97/30p, 12-bit, full FOV 4K: 3944×2088, 47.95/50/59.94, 12-bit, narrow FOV ProRes: 4K: 4096×2160, 23.976/24/25/29.97/30p, 10-bit, HQ, full FOV 2K: 2048×1080, 47.95/50/59.94p, 10-bit, HQ/XQ, narrow FOV H.264: C4K: 4096×2160, 24/25/30/48/50/59.94p H.265: C4K: 4096×2160, 24/25/30p Aspect Ratio 16:9 Cinema-DNG: 6K: 5760×3240, 23.976/24/25/29.97/30p, 12-bit, full FOV 4K: 3840×2160, 23.976/24/25/29.97/30p, 12-bit, full FOV 4K: 3712×2088, 47.95/50/59.94, 12-bit, narrow FOV ProRes: 4K: 3840×2160, 23.976/24/25/29.97p, 10-bit, HQ/XQ, full FOV 2.7K: 2704×1520, 47.95/50/59.94p, 10-bit, HQ, narrow FOV FHD:1920×1080, 47.95/50/59.94p, 10-bit, HQ/XQ, narrow FOV H.264: 4K: 3840×2160, 24/25/30/48/50/59.94p 2.7K: 2720×1530, 24/25/30/48/50/59.94p FHD: 1920×1080, 24/25/30/48/50/59.94p HD: 1280×720, 24/25/30/48/50/59.94p H.265: 4K: 3840×2160, 24/25/30p 2.7K: 2720×1530, 24/25/30/48/50/59.94p FHD: 1920×1080, 24/25/30/48/50/59.94p HD: 1280×720, 24/25/30/48/50/59.94p Aspect Ratio 2.44:1 ProRes: 5.2K: 5280×2160, 23.976/24/25/29.97/30p, 10-bit, HQ, full FOV H.264/H.265: 4K: 3840×1572, 30p, full FOV |
| Photo Modes | Single shot Burst: 3, 5, 7, or 10 frames Auto Exposure (AE) Bracketing: 3/5 bracketed frames at 0.7 EV bias Interval: 5, 7, 10, or 14 fps (up to 20 fps when using RAW burst) |
| ISO Range | Photo: 100 to 25600 Video: 100 to 1600 (EI mode on); 100 to 6400 (EI mode off) |
| Shutter Speed | Electronic Shutter Speed: 1/8000 to 8 seconds Mechanical Shutter Speed: 1/1000 to 8 seconds (DJI DL-S 16mm F2.8 ND ASPH not supported) |
| Supported File Types | Photo: DJI CINESSD: DNG microSD: DNG, JPEG, DNG+JPEG Video: CINESSD: Cinema-DNG, ProRes microSD: MOV, MP4 |
| Recording Media | microSD: Class 10 or UHS-1 rating with a writing speed of 15 MB/s required (up to 64 GB) SSD: DJI CINESSD |
Gimbal
| Mount | Detachable |
| Number of Axes | 3-axis |
| Angular Vibration Range | ± 0.005° |
| Control Range | Tilt: 40 to -125° Pan: ± 300° Roll: ± 20° |
| Manual Control Speed | Tilt: 180°/s Roll: 180°/s Pan: 360°/s |
Genaral
| Operating Temperature | -4 to 104°F (-20 to 40°C) |
| Storage Temperature | -4 to 104°F (-20 to 40°C) |
| Dimensions | 5.9 x 4.3 x 5.2" (151 × 108 × 132 mm) |
| Weight | 449 g (15.8 oz) |
Packaging Info
| Package Weight | 2.6 lb |
| Box Dimensions (LxWxH) | 7.3 x 5.7 x 5.6" |
| Product Manuals | |
|---|---|
| DJI Zenmuse X7 Camera (Lens Excluded) - Product Manual |
- Zenmuse X7 (Lens Excluded) × 1
- Carrying Box × 1
