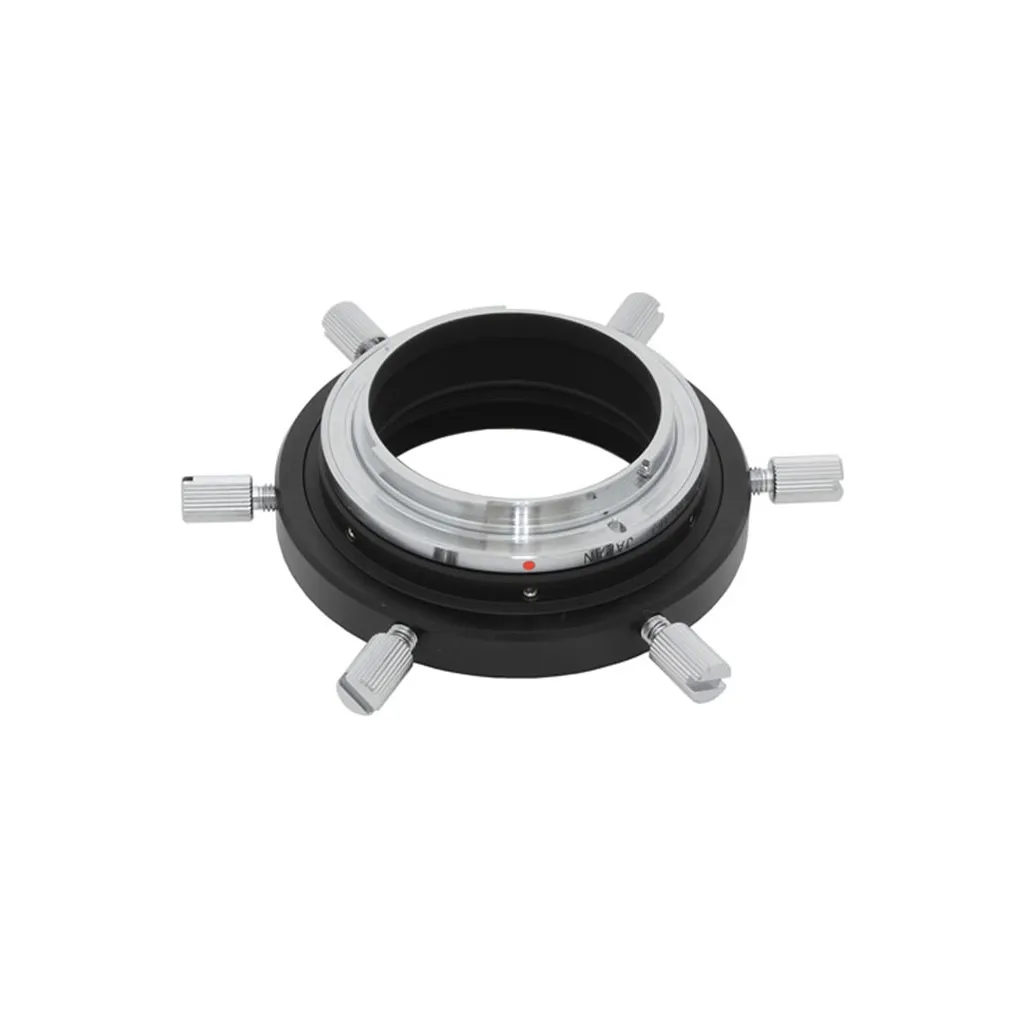

Vixen Wide Photo Adapter 60DX EOS Telescope Accessory
Vixen's new Wide Photo Adapter is designed to connect a 60mm threaded optical tube with the Canon EOS SLR cameras. The adapter is largely improved in precision, durability and rigidity by using new materials and change of structure in comparison with our conventional type (*2). The camera mount with a larger inner diameter eliminates light loss in surrounding, particularly in combination with full-frame DSLR using large image sensor. (*1) EF-Mount, EF-S Mount. EF-M Mount is not attachable. (*2) Wide Photo Adapter 60mm for Canon EOS or Four-Thirds + T-Ring for EOS

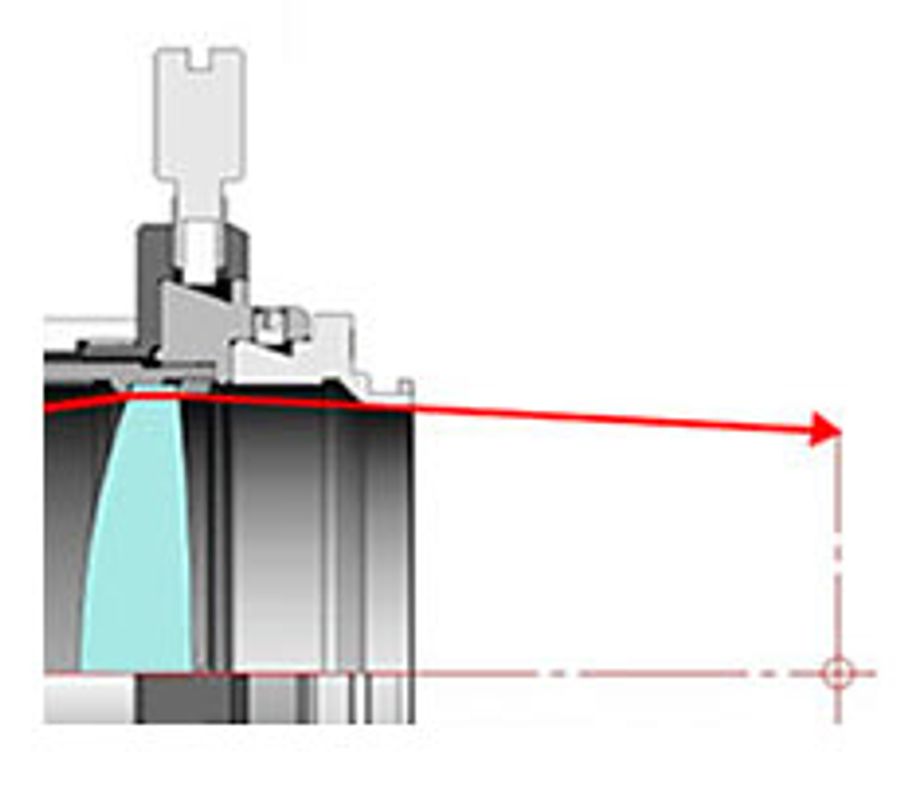

Prevent Vignetting or Stray Light
The original camera mount with larger inner mount diameter(T-ring inner diameter φ46.5mm→new mount inner diameterφ52mm（for EOS)) excellently reduces surrounding light loss by reducing the vignetting ; Stray light is thoroughly eliminated by careful blackening and light-shielding process.

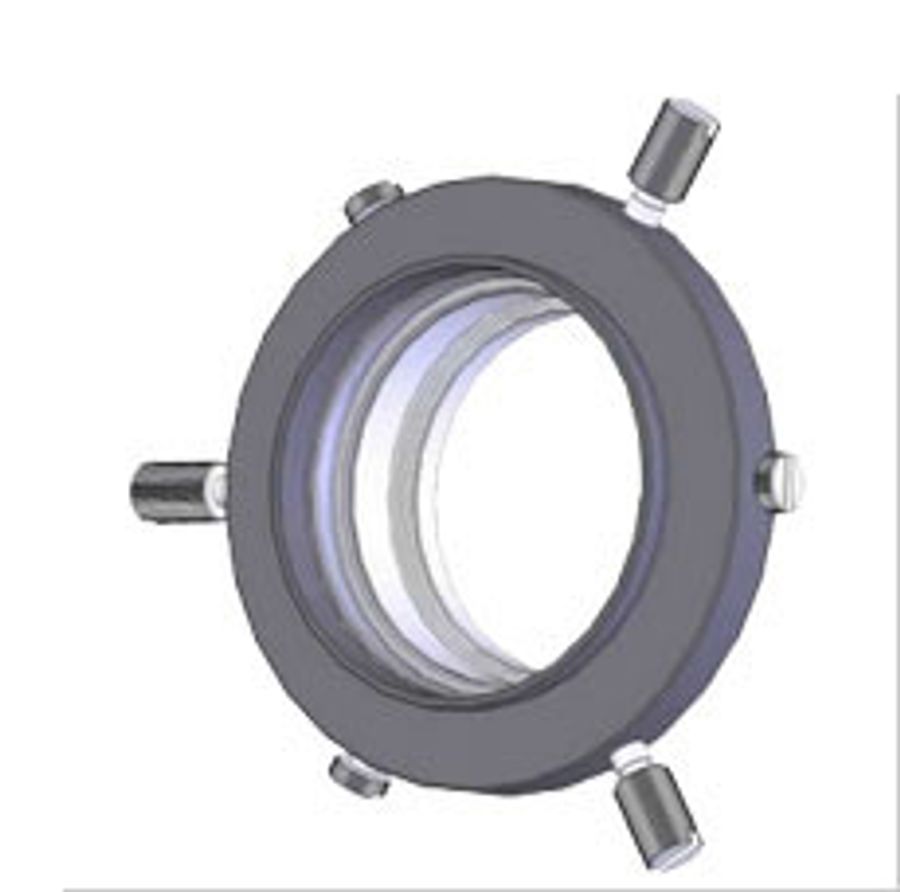

Camera Rotation System's Improvement
Two different sizes of lock screws are provided for optimal lock and smooth camera rotation mechanism. Additional set screw without head is supplied for possible prevention of interference with camera body.

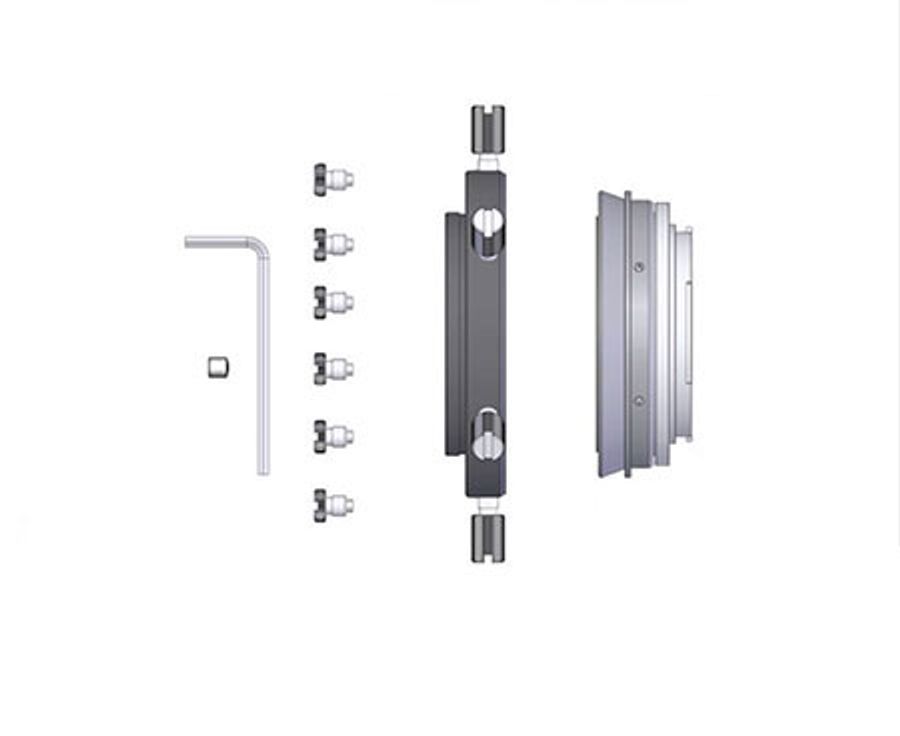

Contents of Accessories
Precision and Durability
Use of brass the connecting part with camera; Excellent durability, still keep high precision even being used long time; Thicker components improve the overall strength of the adapter; Additional lock screws and larger knobs help to secure the camera; A Delrin tip attached at the edge of the screws improves the adhesion between components, possibility in squaring error is reduced by using Delrin chip on the very screw tip.
Fully Compatible with All 60mm Threaded Accessories
Fully compatible with all 60mm threaded accessories, while the conventional wide photo AD60 can be replaced.
Brand: Vixen |
Code: VX38751
APN: 4955295387519 |
Supplier Code: 38751
Supplier Description: Wide Photo Adapter 60DX EOS
Brand: Vixen |
Code: VX38751
APN: 4955295387519 |
Supplier Code: 38751
Supplier Description: Wide Photo Adapter 60DX EOS
At a glance
Vixen's new Wide Photo Adapter is designed to connect a 60mm threaded optical tube with the Canon EOS SLR cameras. The adapter is largely improved in precision, durability and rigidity by using new materials and change of structure in comparison with our conventional type (*2). The camera mount with a larger inner diameter eliminates light loss in surrounding, particularly in combination with full-frame DSLR using large image sensor. (*1) EF-Mount, EF-S Mount. EF-M Mount is not attachable. (*2) Wide Photo Adapter 60mm for Canon EOS or Four-Thirds + T-Ring for EOS
Related Categories Accessories
Prevent Vignetting or Stray LightThe original camera mount with larger inner mount diameter(T-ring inner diameter φ46.5mm→new mount inner diameterφ52mm（for EOS)) excellently reduces surrounding light loss by reducing the vignetting ; Stray light is thoroughly eliminated by careful blackening and light-shielding process. |
|
|
|
Camera Rotation System's ImprovementTwo different sizes of lock screws are provided for optimal lock and smooth camera rotation mechanism. Additional set screw without head is supplied for possible prevention of interference with camera body. |
Contents of Accessories |
|
