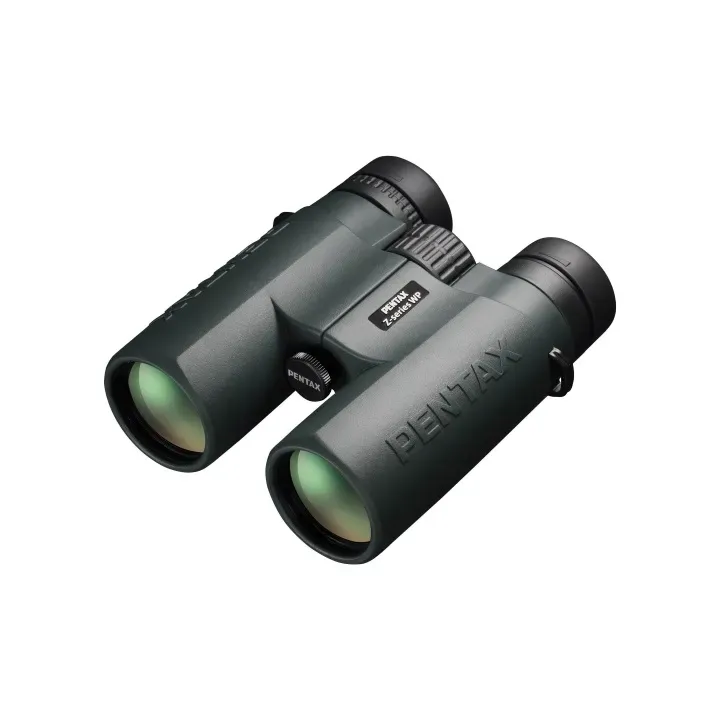

Pentax ZD 8x43 ED Binoculars
$1,595.00
In Stock
- Extra Low-Dispersion Glass
- Phase-Corrected BAK4 Roof Prisms
- Hybrid Aspherical Lens Elements
- Fully Multicoated Optics
- Angle Viewing: 50°
- Nitrogen-Filled, Water and Fogproof
- Closed Bridge Configuration
- Magnesium Alloy Chassis
- Tripod Mountable
- Twist-Up Eyecups
Optical Performance
- 8x magnification
- 43mm objective lenses
- BAK4 Roof prism optical path
- Anti-reflection fully multicoated optics
- Extra-low dispersion (ED) glass reduces chromatic aberration for sharper images with accurate color
- Phase corrected prisms produce high-contrast images with true color rendition
- Hybrid aspherical lens elements correct for spherical aberrations to reduce distortion at the edges of the lens and corrects for astigmatism that can prevent sharp focusing
- 8' field of view at 1000 yards
- 50° angle of view
Use and Handling
- Closed bridge configuration
- Large knurled center focus wheel
- Right-eye diopter adjustment
- 22mm eye relief, 5.4mm exit pupil
- Twist-up eyecups for use with or without eye wear
- Tripod mountable with optional adapter
Construction Details
- Lightweight and durable magnesium alloy housing
- Rubberized armoring protects against impacts and provides slip-resistant grip
- Nitrogen-filled, fogproof and submersible to 3.3' (1m)
- Internal focusing system helps to maintain waterproof seals
- Dust/water/grease repellent coatings keeps the optical surfaces clean
|
Prism Type |
Roof |
|
Magnification |
8x |
|
Objective Lens Diameter |
43mm |
|
Angle of View |
6.3° (actual) |
|
Field of View |
330.7 @ 1000 yd / 110.2 m @ 1000 m |
|
Minimum Focus Distance |
42.7 / 1.1 m |
|
Exit Pupil Diameter |
5.4 mm |
|
Eye Relief |
22 mm |
|
Focus Type |
Center |
|
Tripod Mount |
Yes (Adapter Optional) |
|
Dimensions |
5.7 x 5.0 x 2.1" / 14.5 x 12.7 x 5.3 cm |
|
Weight |
25.2 oz / 714.4 g |
Brand: Pentax |
Code: 62701
APN: 0027075288522 |
Supplier Code: 62701
Supplier Description: PX BINO ZD 8x43 ED
Brand: Pentax |
Code: 62701
APN: 0027075288522 |
Supplier Code: 62701
Supplier Description: PX BINO ZD 8x43 ED
At a glance
- Extra Low-Dispersion Glass
- Phase-Corrected BAK4 Roof Prisms
- Hybrid Aspherical Lens Elements
- Fully Multicoated Optics
- Angle Viewing: 50°
- Nitrogen-Filled, Water and Fogproof
- Closed Bridge Configuration
- Magnesium Alloy Chassis
- Tripod Mountable
- Twist-Up Eyecups
