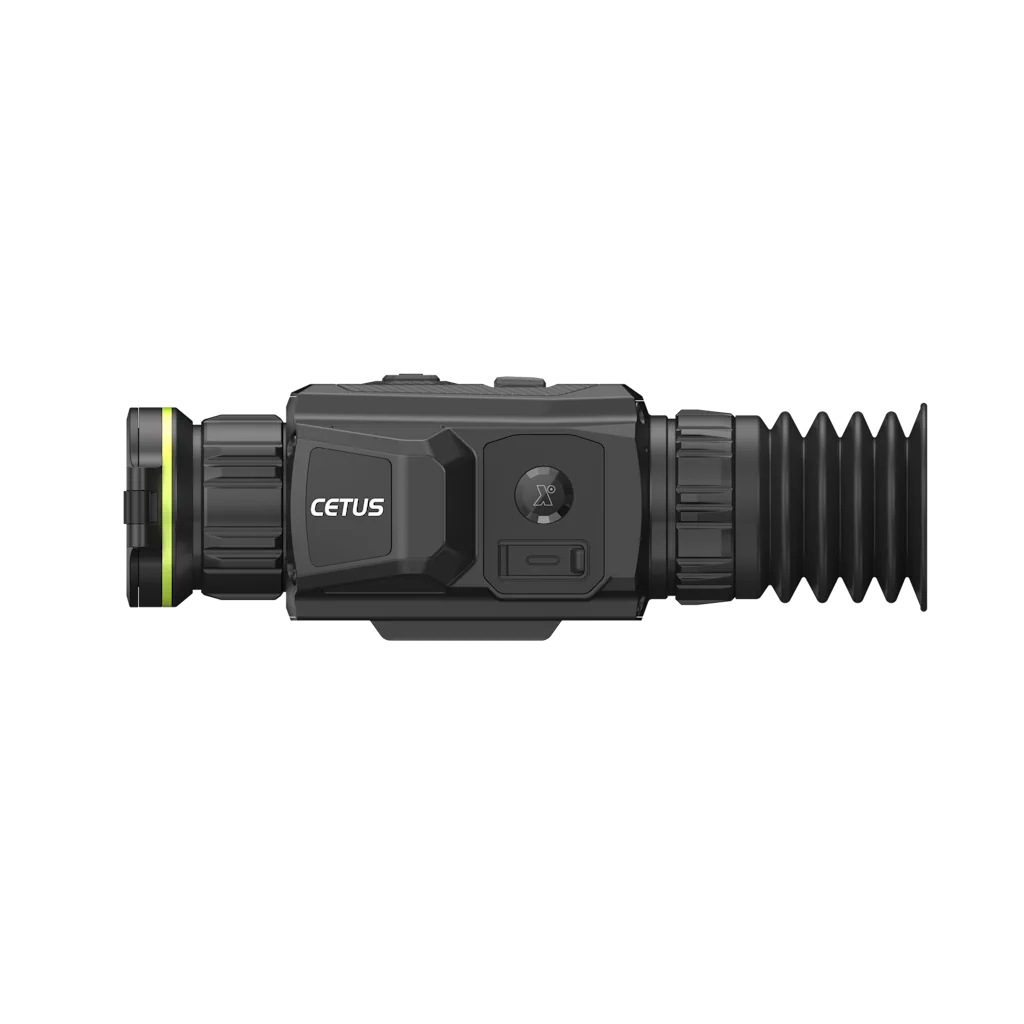

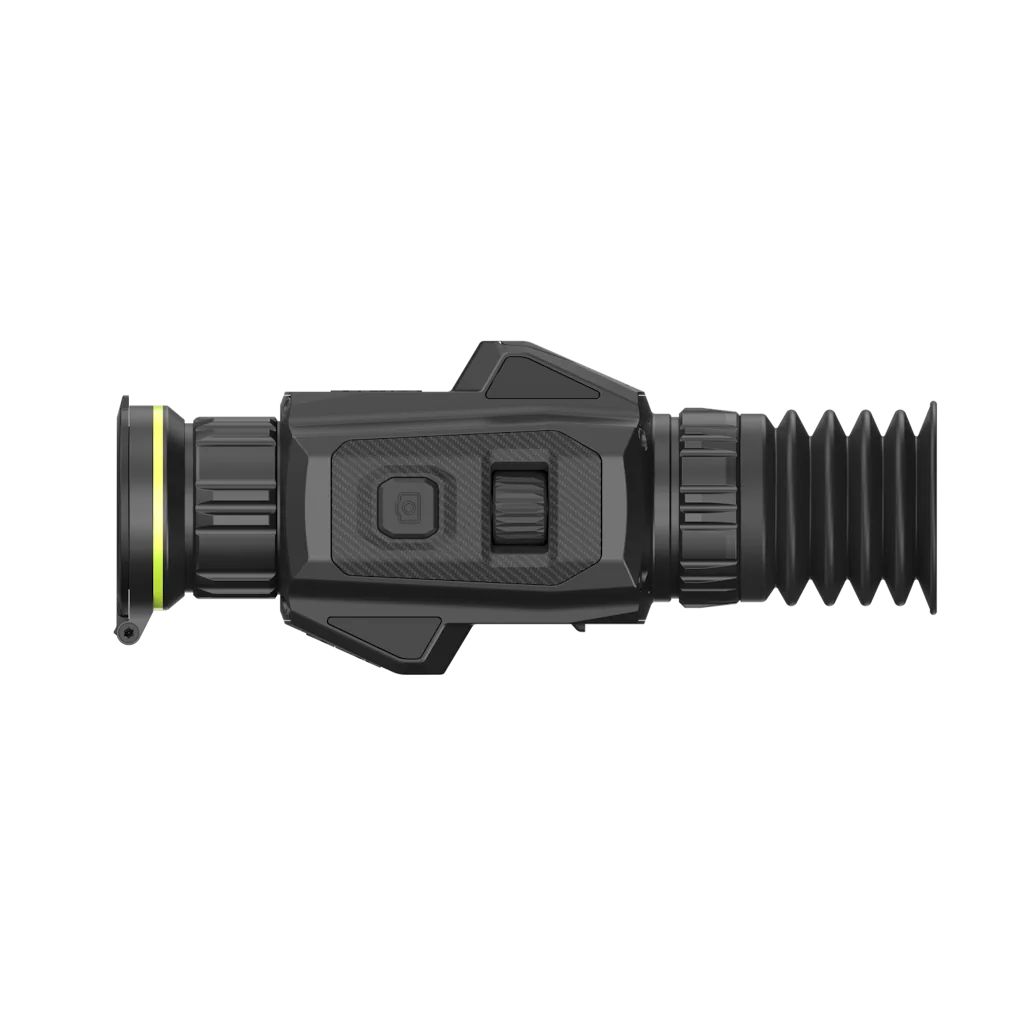

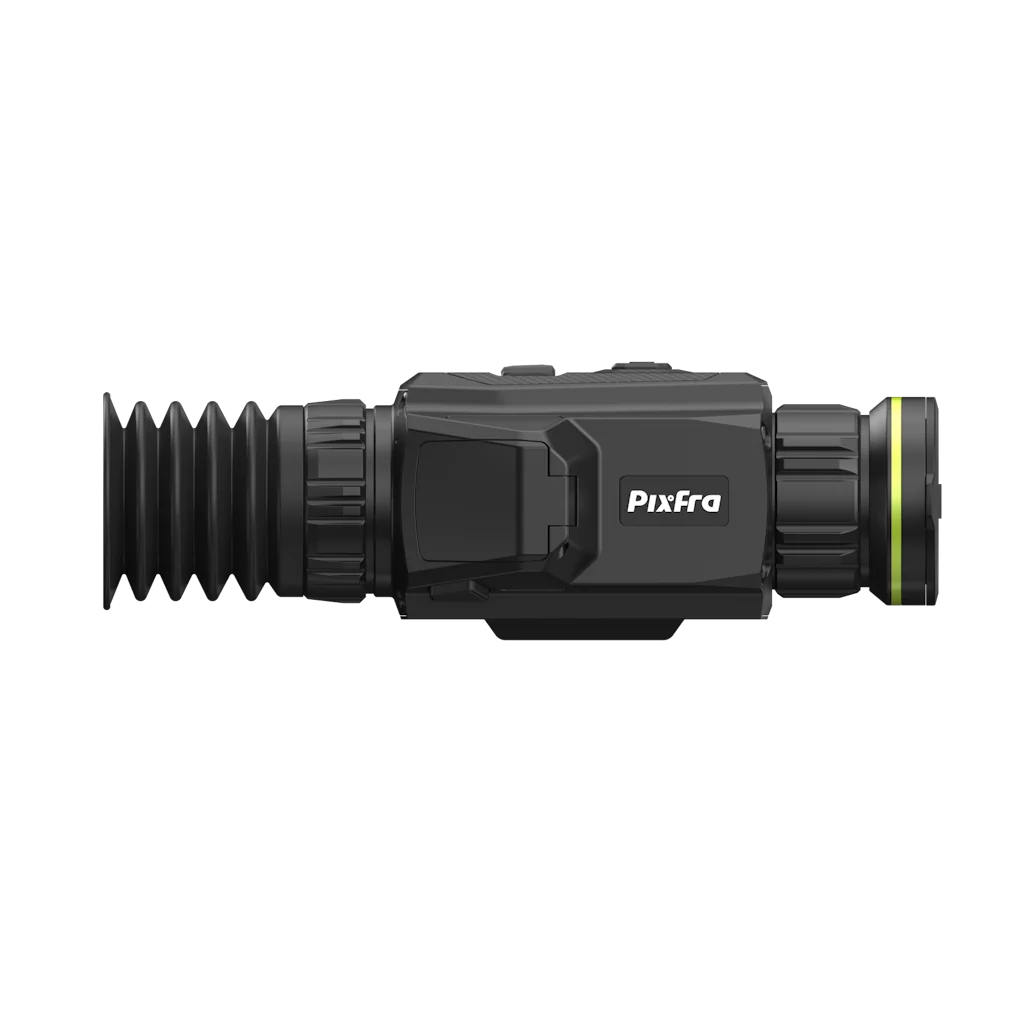

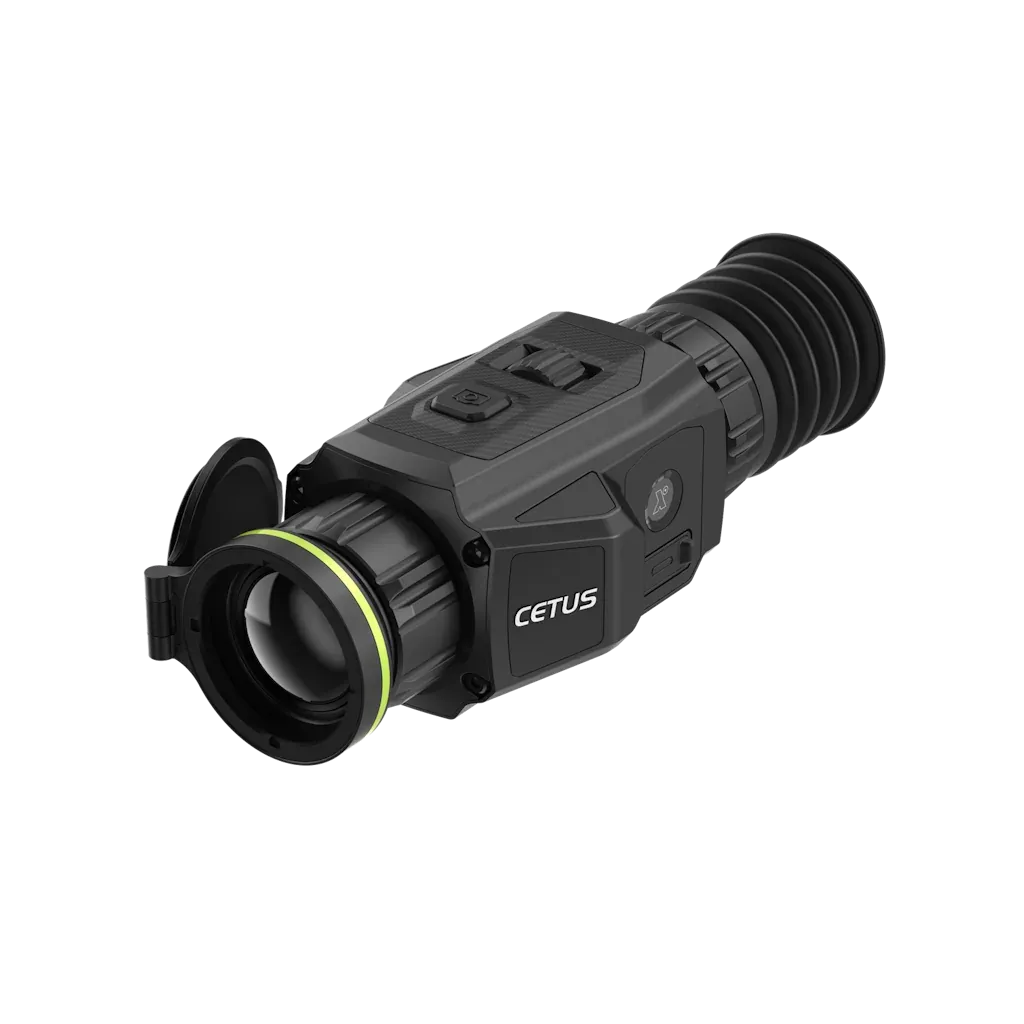

Pixfra CETUS 650 Thermal Riflescope 50mm Pix 640x512 Dis 1600x1200
Thermal imaging monocular provides professional night portable observation device for outdoor enthusiasts by using thermal imaging technology and Pixfra's unique image algorithms. It can be applied to scenes such as hunting, and field exploration.
Pro-grade Image Sensor
All models adopt 12μm detector, up to 640×512 resolution, detector sensitivity < 30mk, even in heavy rain, fog or cold harsh environment, can perfectly present details, clearly observe the target feature details.
Ultra-low Latency
Hunting is all about “The moment,” so there must be no error between what you see on your device‘s display and where your target actually is. PIPS( Pixfra Imaging Processing Solution ) allows image latency of less than 20ms, compared to 60ms with conventional image solutions, which will help you to accurately aim at the target.
High Shock Resistance
The rugged structure is designed to withstand a maximum recoil of over 6,000 joules, perfect for a variety of rifle with calibers of 12 gauge, 9.3x64, .375H&H, etc.
Thermal
|
Detector Type |
Vanadium oxide uncooled focal plane detector |
|
Effective Pixels |
640 (H) × 512 (V) |
|
Pixel Pitch |
12 μm |
|
Spectral Range |
8 μm–14 μm |
|
Sensitivity (NETD) |
≤30 mK@f/1.0, 25°C |
|
Focal Length |
50 mm |
|
Aperture |
F1.0 |
|
Field of View |
H: 8.7°; V: 7.0° |
|
Focus Control |
Fixed |
|
Close Focus Distance |
5 m (16.40 ft) |
|
Detection Distance |
2,600 m (8,530.18 ft) |
|
Magnification |
2.63 × |
|
Frame Rate |
50 Hz |
Display
|
Screen |
1440 × 1080, 0.41 inch, OLED |
|
Color Palettes |
6 (white hot/black hot/iron red/alarm/emerald/amber) |
|
Video Compression |
H.264 |
|
Diopter Adjust |
–5 D to +5 D |
|
Eye Relief |
44 mm (1.73") |
|
Exit Pupil |
6 mm |
Function
|
Digital Zoom |
1×; 2×; 4×; 8× |
|
Reticle |
Multiple Patterns & Color Options |
|
Zeroing |
Yes |
|
Video Recorder |
Yes |
|
Snapshot |
Yes |
|
WiFi Hotspot |
Yes |
|
Hot Spot Track |
Yes |
|
Video Distance Measurement |
Yes |
|
FFC Calibration |
Auto; manual; immediately |
|
Standby Mode |
Yes |
|
PIP (Picture in Picture) |
Yes |
|
DPC (Defective Pixel Correction) |
Yes |
|
RAR (Recoil Activated Recorder) |
Yes |
| Datasheets | |
|---|---|
| Pixfra CETUS 650 Thermal Riflescope 50mm Pix 640x512 Dis 1600x1200 - Datasheet | Product Manuals |
| Pixfra CETUS 650 Thermal Riflescope 50mm Pix 640x512 Dis 1600x1200 - Product Manual |
Brand: Pixfra |
Code: PFI-C650
APN: 9319499328658 |
Supplier Code: C650V2
Brand: Pixfra |
Code: PFI-C650
APN: 9319499328658 |
Supplier Code: C650V2
