Vixen ATREK II 10x32 DCF Roof Prism Binoculars
PFM coat
Uses PFM coat (Perfect Fully Multi Coat). Multi-coating is applied to the entire surface of the prism and lens (objective and eyepiece), resulting in extremely excellent contrast.

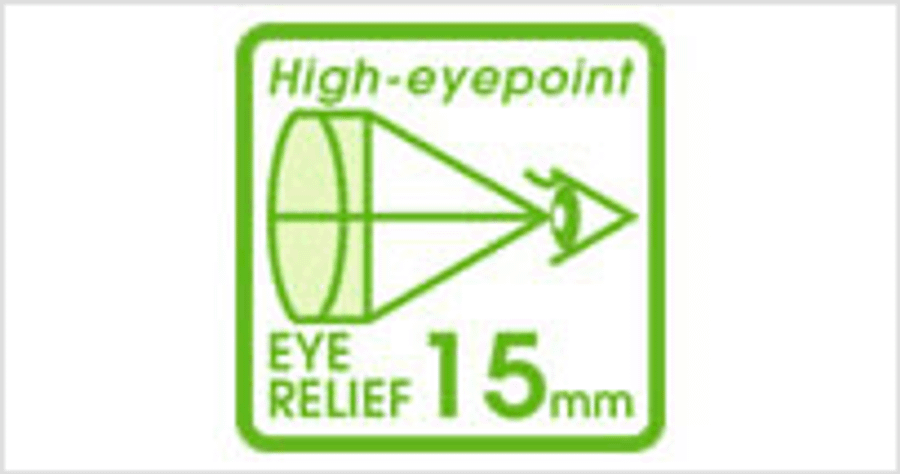

High eye point design
The high eyepoint design makes the eyes less likely to get tired even after long-term observation. You can see a wide field of view even while wearing glasses.
Waterproof design

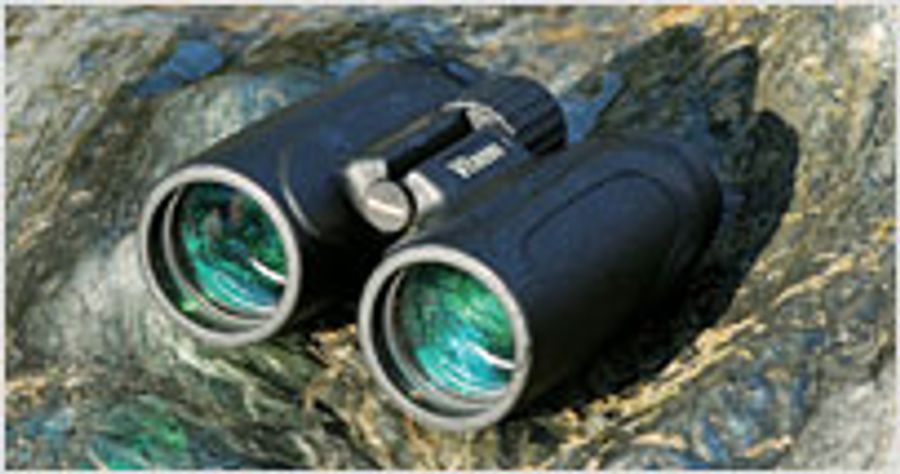

It is designed so that water does not enter the lens barrel even if it gets wet with rain or snow, so it is suitable for outdoor use where the weather can change.※The photograph is an image.
Roof prism
The roof (=Dach/German) prism specification enables the lens barrel to be designed in a straight line. The smart form is attractive.
Can be mounted on a tripod
By using Carrying Vino Holder S together, you can attach it to a tripod with the case attached.
Rubber body

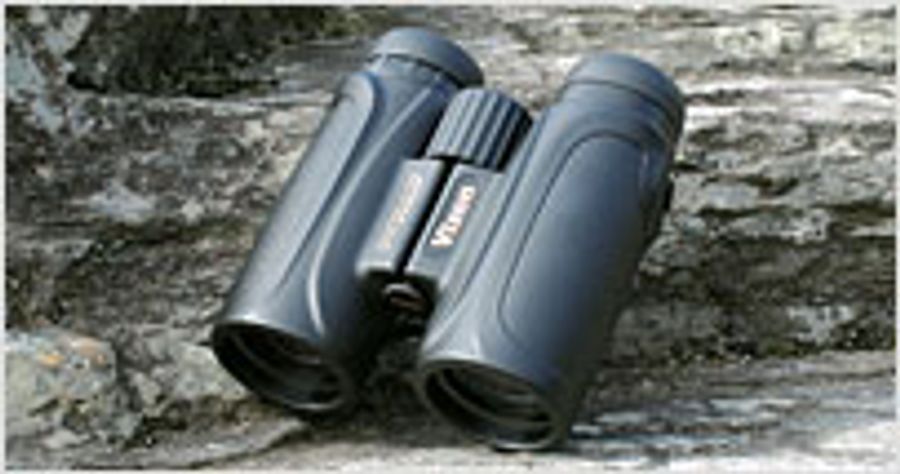

It has a rubber body that can withstand hard use outdoors.※The photograph is an image.
5 year warranty
If the product is used correctly according to the instruction manual and a malfunction occurs within 5 years from the date of purchase, we will repair the product free of charge.
| magnification | 10 times |
| Objective lens effective diameter | 32 mm |
| Prism material | BaK4 |
| Coating | PFM multi coat |
| Real field of view | 6.0 degrees |
| Apparent field of view | 55.3 degrees |
| 1000m vision | 105m |
| Pupil diameter | 3.2 mm |
| Brightness | 10.2 |
| Eye relief | 15.0 mm |
| Close range | About 1.2m |
| Pupil distance | About 57-75mm |
| Size/height x width x thickness | 10.9 x 11.9 x 4.3 cm |
| weight | 360g |
| Other | Waterproof |
Brand: Vixen |
Code: VX14724
APN: 4955295147243 |
Supplier Code: 14724
PFM coatUses PFM coat (Perfect Fully Multi Coat). Multi-coating is applied to the entire surface of the prism and lens (objective and eyepiece), resulting in extremely excellent contrast. |
|
|
High eye point designThe high eyepoint design makes the eyes less likely to get tired even after long-term observation. You can see a wide field of view even while wearing glasses. |
Waterproof designIt is designed so that water does not enter the lens barrel even if it gets wet with rain or snow, so it is suitable for outdoor use where the weather can change.※The photograph is an image. |
|
Roof prismThe roof (=Dach/German) prism specification enables the lens barrel to be designed in a straight line. The smart form is attractive. |
|
Can be mounted on a tripodBy using Carrying Vino Holder S together, you can attach it to a tripod with the case attached. |
|
|
Rubber bodyIt has a rubber body that can withstand hard use outdoors.※The photograph is an image. |
5 year warrantyIf the product is used correctly according to the instruction manual and a malfunction occurs within 5 years from the date of purchase, we will repair the product free of charge. |
