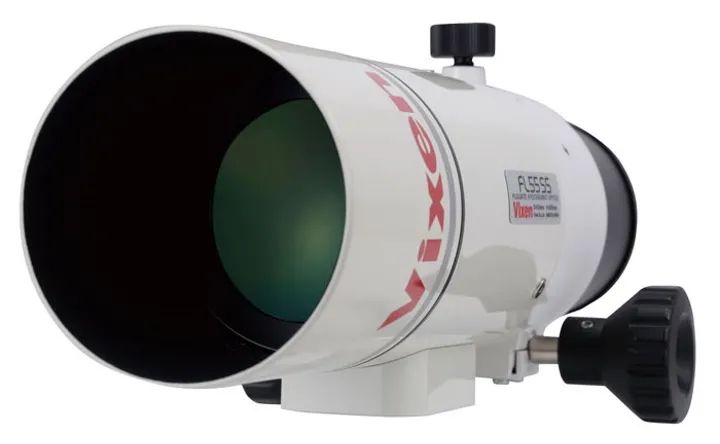

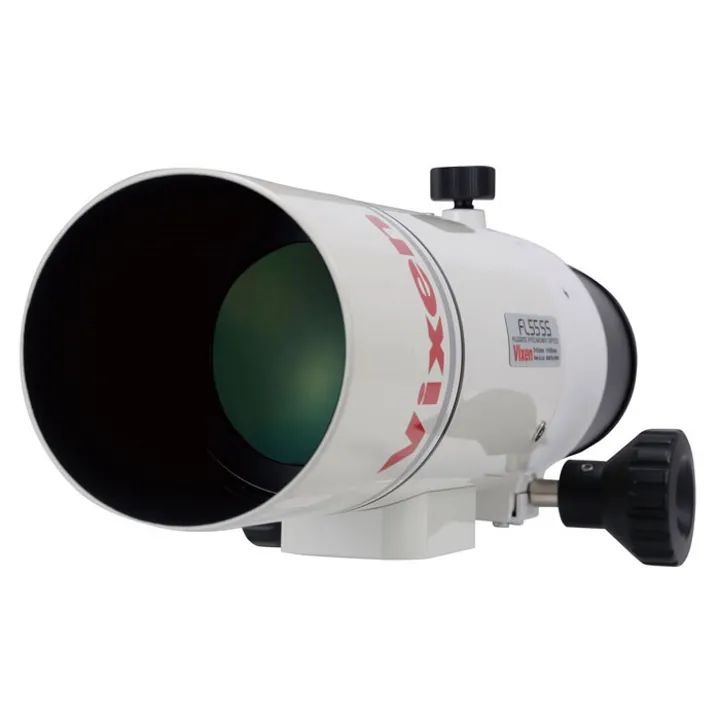

Vixen FL55SS Telescope Optical Tube Assembly (OTA)

$1,600.00 HURRY! Only 1 unit left

The Vixen FL55SS Telescope Optical Tube Assembly is a highly compact photo-visual refractor designed to deliver outstanding optical performance. Featuring a premium fluorite apochromatic lens, this portable telescope minimises chromatic aberration to produce incredibly sharp images with minimal colour bleeding.

Key Features

Premium 55mm fluorite apochromatic objective lens with multi-coating for superior clarity and colour correction.
Short 300mm focal length with a fast f/5.5 aperture ratio, ideal for wide-field views.
Extremely lightweight and portable design, weighing just 1.5kg with a physical length of 282mm.
Supplied with a slide bar M, featuring built-in 1/4-inch and 3/8-inch tripod sockets for easy mounting on standard photo tripods or astronomical mounts.
Highly versatile system compatible with optional high-resolution eyepieces or dedicated photographic corrective lenses for full-frame sensors.

Whether you are observing planetary details or capturing stunning deep-space astrophotography, this telescope offers exceptional optical versatility. Its travel-friendly dimensions make it the perfect grab-and-go companion for astronomers and astrophotographers alike.

Fluorite lens

A fluorite lens with less chromatic aberration is used to create a sharp image with less color bleeding.

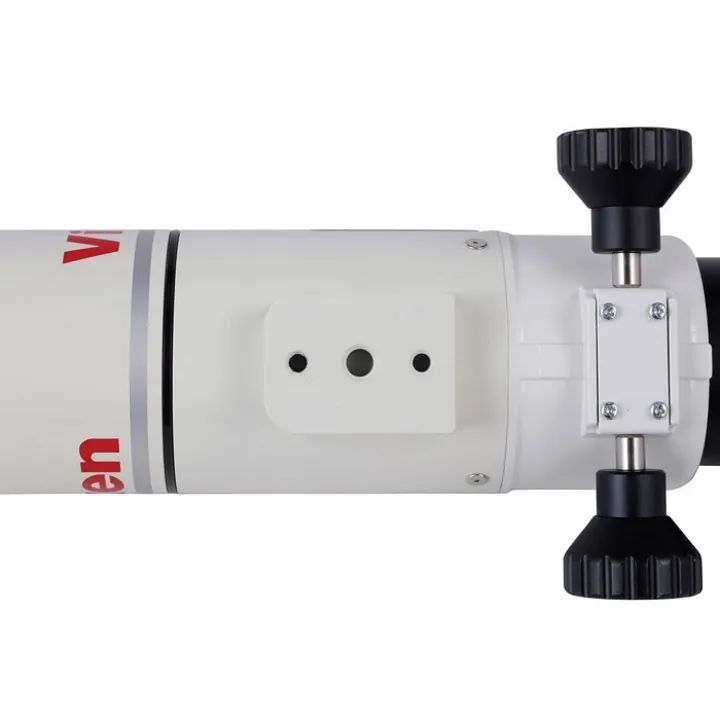

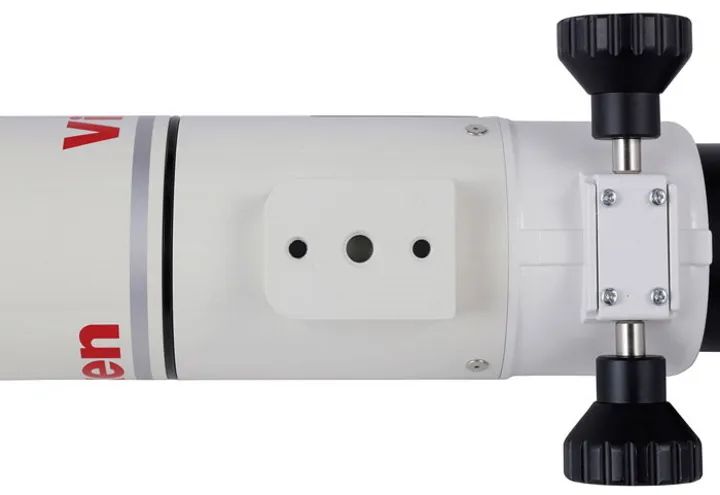

Vixen standard Arimizo, equipped with camera tripod screw

Equipped with slide bar M. It can be mounted as it is on a stand with Vixen standard Arimizo such as AP series and SX series. Equipped with 1/4 inch and 3/8 inch screws. It can be mounted on a commercially available camera tripod.

Compatible with finder (sold separately)

Equipped with screws compatible with the Arimizo finder pedestal (sold separately). Compatible with the separately sold finder (finder legs).

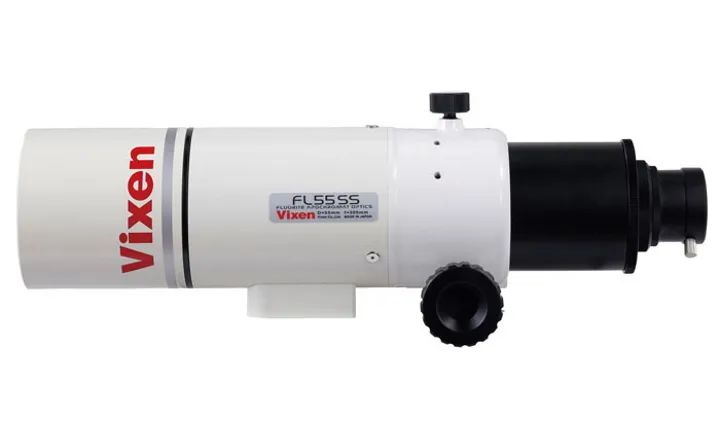

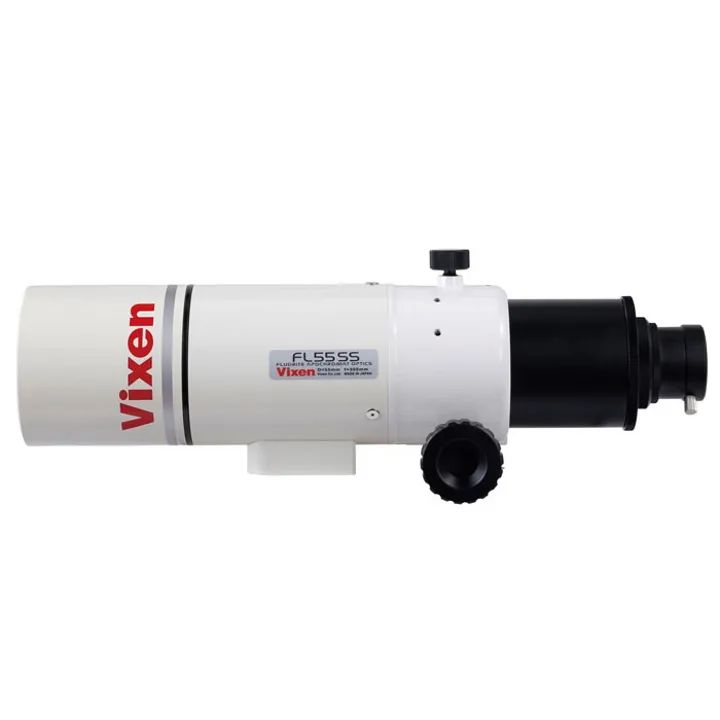

Compact photo visual lens barrel

A very compact photo visual lens barrel equipped with a fluorite lens.

In combination with the high-resolution HR series eyepiece, it demonstrates high visual performance despite its small aperture and short focus. Especially when observing the moon and planets, you can get a higher-grade powerful image.

It can also be used as a high-performance astro camera by using a dedicated flattener lens and reducer lens (sold separately) together. It creates a sharp image over the entire field of a full-frame SLR camera.

Lens barrel

Effective diameter of objective lens	55mm / Fluorite Apochromat / Multi-coating
Focal length (aperture ratio F)	300mm (F5.5)
Resolution / limit grade	2.11 seconds, 10.5, etc.
Condensing power	62 times the naked eye
Size / weight	Length 282mm (without extension tube) Outer diameter 80mm 1.5kg
Finder	Arimizo type pedestal (sold separately) can be installed

Eyepiece

Parts mounting size	Screwed in / 60mm, 43mm, 36.4mm inserted / 31.7mm
Eyepiece (31.7mm diameter)	31.7mm diameter eyepiece (sold separately) can be used

Other

Plates, bands, etc.	Slide bar M
photography	Enlargement, direct focus, compact digital camera (colimate) shooting possible * A separate camera adapter etc. is required
Sun observation	Can be used in combination with the solar projection plate A set (sold separately) (fits, but the weight balance cannot be perfectly adjusted.)
Gross weight	1.5kg (by eyepiece)

Related Categories

Brand: Vixen | Code: VX26201
APN: 4955295262014 | Supplier Code: 26201
Supplier Description: FL55SS OTA
