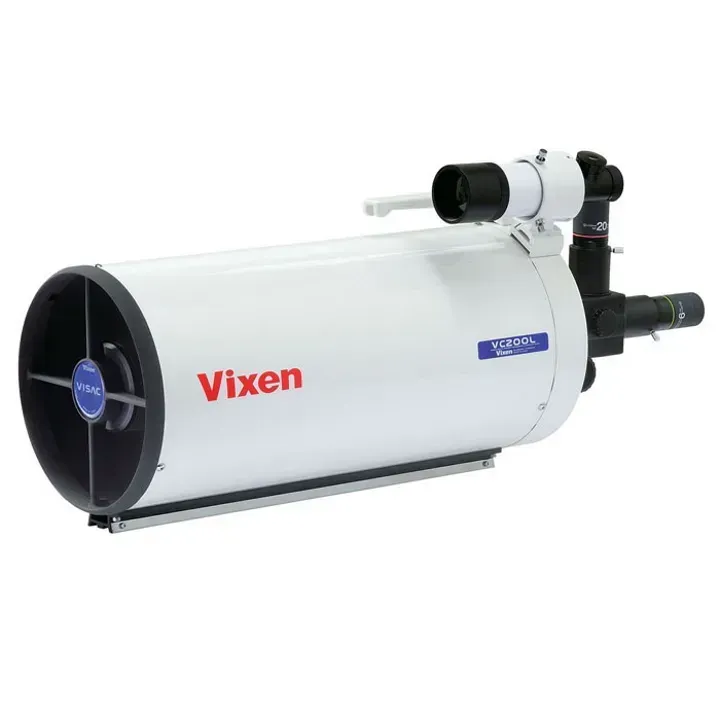

Vixen VC200L 200mm f/9.0 Catadioptric Telescope Optical Tube Assembly (OTA)
- Pinpoint star images with no coma or field curvature for exceptional clarity.
- Vixen’s unique VISAC system: aspherical primary mirror, convex secondary mirror, and triplet corrector lens.
- Perfectly corrected aberrations (coma, spherical, curvature) for sharp, high-definition results.
- Edge-to-edge performance: star images under 15 microns across the full 42mm image circle.
- Versatile use: ideal for both visual observation and astrophotography, with optional F6.4 reducer for deep sky imaging.
Outstanding pinpoint star images without coma and without field curvature, outstanding performance in astrophotography.
Vixen's unique catadioptric system consisting of a high precision sixth-order aspherical (VISAC) primary mirror, a convex secondary mirror and a triplet corrector lens, provides high definition star images to the edge of a wide imaging field and offers exceptionally outstanding performance in astrophotography. As coma aberration, spherical aberration and curvature of field are perfectly corrected, images captured with the VC200L are stunningly sharp. Star images are less than 15 microns across all the way to the very edge of the 42mm image circle. The VISAC mirror produces images of high quality that are perfect for both visual observation and astrophotography. An optional VC reducer which produces fast F6.4 forcal ratio is best for imaging of deep sky objects.
| Primary mirror | 200mm effective aperture, sixth-order aspherical mirror, multicoated |
| Focal length (Focal ratio) | 1,800mm (F9.0) |
| Resolving power / Limiting magnitude | 0.58 arc seconds / 13.3 |
| Light gathering power | 816×unaided eye |
|
Dimensions / Weight
|
232mm dia. and 600mm long / 6.9kg (6.0kg) |
| Finder scope | 7×50mm with dark-field illuminated reticle, 7 degrees field of view |
| Adapter thread / Visual back | 60mm and 42mmforT-ring / 50.8mm and 31.7mm push fit with flip mirror diagonal |
| Accessories | Dovetail attachment rail, Metal carry handle |
| Photography | Usable with Prime focus, Eyepiece projection and Afocal imaging |
| Solar observation | Not available |
| Product Manuals | |
|---|---|
| Vixen VC200L 200mm f/9.0 Catadioptric Telescope Optical Tube Assembly (OTA) - Product Manual |
- Vixen Optics VC200L 200mm f/9 Catadioptric Telescope (Optical Tube Assembly Only)
- Vixen Optics 7x50 Finderscope
- Vixen Optics 50mm SX Finder Bracket - Short
- Vixen Optics Finder Bracket Shoe
- SX 60mm to 50.8mm Adapter
- Vixen Optics Flip Mirror System
- Dovetail Rail
- Carrying Handle
- Limited 5-Year Manufacturer Warranty
Brand: Vixen |
Code: VX2632
APN: 4955295263202 |
Supplier Code: 2632
Supplier Description: VC200L OTA
Brand: Vixen |
Code: VX2632
APN: 4955295263202 |
Supplier Code: 2632
Supplier Description: VC200L OTA
At a glance
- Pinpoint star images with no coma or field curvature for exceptional clarity.
- Vixen’s unique VISAC system: aspherical primary mirror, convex secondary mirror, and triplet corrector lens.
- Perfectly corrected aberrations (coma, spherical, curvature) for sharp, high-definition results.
- Edge-to-edge performance: star images under 15 microns across the full 42mm image circle.
- Versatile use: ideal for both visual observation and astrophotography, with optional F6.4 reducer for deep sky imaging.
