Vixen Polarie U Star Tracker
Lightweight and small yet delivering high performance. You will be able to create fine pieces of work in nature photographs with the state-of-the-art POLARIE U.
An image “full of stars” has never been easier! When you see beautiful things, you may want to take a photo to keep the image. Why not record the beauty of the starry night sky?
When you see beautiful things, you may want to take a photo to keep the image. Why not record the beauty of the starry night sky?
The POLARIE U is an ultra-compact automatic star tracking device that can easily be transported. In addition to functions of conventional star trackers that move a camera for long exposure according to the diurnal motion of the celestial objects, it features a function for customizing rotation speeds using a smartphone and can control the intervals of shots by adjusting the shutter release. By linking the motion of the POLARIE U with the shutter release, you can easily set up complex shooting controls required for interval photography and time-lapse photography with your smartphone.
| R.A. slow motion control | Wheel and worm gears full circle micro movement, 58.4mm in diameter, 144-tooth, made of aluminum alloy |
| Worm gear shaft | 9.8mm in diameter, made of brass |
| R.A. axis (Polar axis) | 40mm in diameter, made of aluminum alloy |
| Number of bearings | 2 pieces |
| Drive | Pulse motor drive |
| Locading capacity | 2.5 kg(5.5 lbs): Standard / 6.5 kg(14 lbs): Upgraded / 10 kg(22 lbs): Time-lapse |
| Tracking rates | Celestial speed, 0.5x celestial, solar, lunar, available in N and S hemispheres (Remote setting is possible with a smartphone.) |
| Sight tube finder | It is used in the northern hemisphere to guide the unit to Polaris. 8.9 degrees field of view with no magnification. |

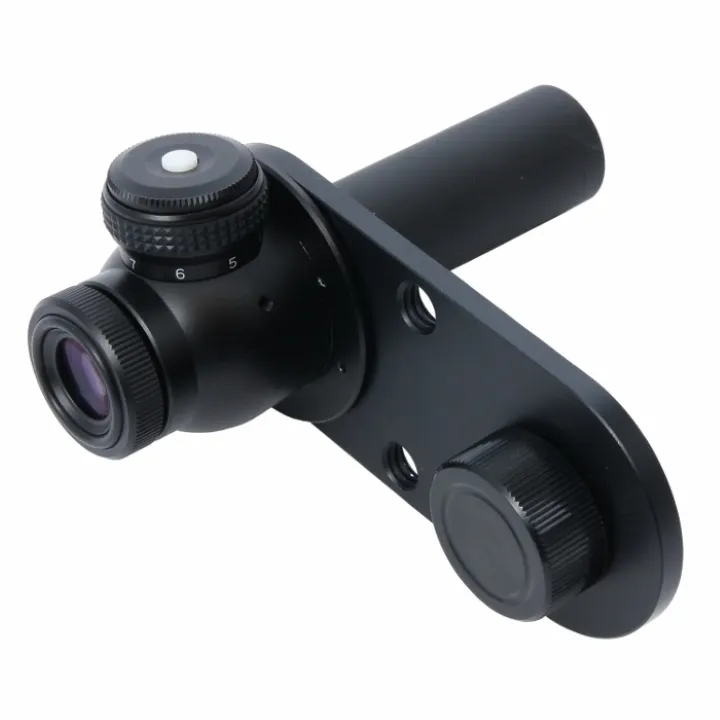

| Polar scope | Optionally available Polar alignment scope PF-L II is usable. Polar scope arm bracket sold separately is needed. |
| Leveling | Bubble lvel is provided for time-lapse photography.` |
| Tripod adapter block | 3/8" camera screw sockets (2 places) with a conversion adaper for 1/4" screw, compatible with attachment plates of the standard thin type. |
| Shutter release terminal | 2.5mm female jack for tripolar stereo mini plug, Pin assignment: On order of full shutter, half shautter and common, from center to outward |
| Autoguider Port | 6-pole 6-wired modular jack (for an external autoguider) |
| External Power Supply Port | USB Type-C |
| Power Source | 4 x AA alkaline batteries, Ni-MH or Ni-Cd rechargeable batteries, USB Type-C external power batteries |
| Working Voltage / Electricity Consumption | AA batteries: DC 4.8V to 6.0V, Max. 0.6A (at 2.5kg/5.5 lbs. loading weight)External power supply: DC 4.4V to 5.25V, Max. 0.3A (at 2.5kg/5.5 lbs. loading weight) |
| Working Duration | About 7 hours at 20 degrees C (68 F) temperature, with use of Alkaline batteries (at 2.5kg/5.5 lbs loading weight). |
| Wi-Fi | Application software for POLARIE U and a smartphone or communication terminal device that works on Wi-Fi are needed. |
| Operating Environment for Application Software | OS: Android 4.4 and over or iOS 9.9 and over* Wi-Fi: IEEE 802.11b/g, Data Encryption Method: WPA2-PSK, *IBe sure to confirm the operation of the application, as some smartphones do not meet the requirements. |
| Operating Temperature | 0 degree to 40 degrees C (104 F) |
| Dimensions | 88.5mm x 72mm x 110.5mm |
| Weight | 575 g / 1.26 lbs. (without batteries) |
| Optional Accessories | Polar alignment scope PF-L II, Polar scope arm bracket, Polar fine adjustment unit DX, Polar meter |
- POLARIE U Star Tracker
- Sight tube finder
- Time-lapse direction sticker
- Allen wrench of 3mm on a side
- User manual
Brand: Vixen |
Code: VX35491
APN: 4955295354917 |
Supplier Code: 35491
Supplier Description: Polarie U Star Tracker
Brand: Vixen |
Code: VX35491
APN: 4955295354917 |
Supplier Code: 35491
Supplier Description: Polarie U Star Tracker
At a glance
Lightweight and small yet delivering high performance. You will be able to create fine pieces of work in nature photographs with the state-of-the-art POLARIE U.
