DJI Power Solar Panel Adapter Module (MPPT)
- Connect to up to three solar panels
- For eco-friendly solar recharging
- Supports up to 400 W

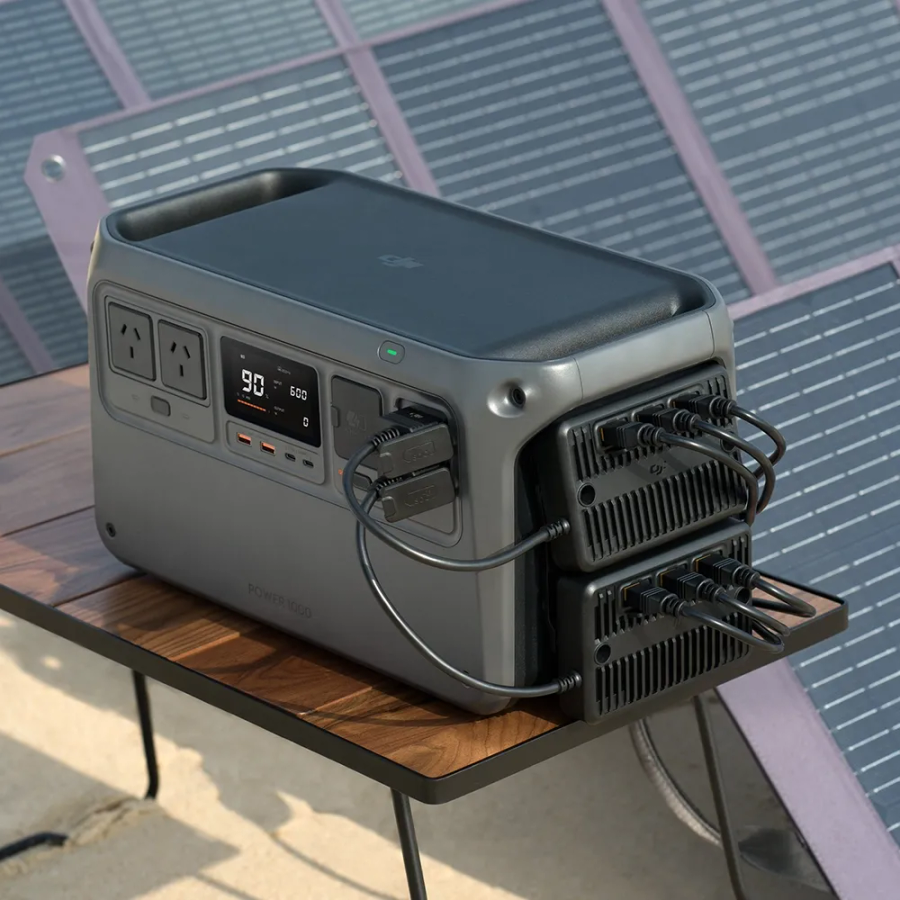

When a DJI Power-series power station is connected to the DJI Power Solar Panel Adapter Module (MPPT), users can link solar panels through the XT60 interface on the adapter panel for eco-friendly recharging of the DJI Power series. It is recommended to use the DJI Power-series power stations in conjunction with solar panels from the DJI-certified brand Zignes. If using solar panels from other brands, using the MPPT module and a conversion of the solar panel port to the XT60 interface are necessary to enable solar recharging for the DJI Power series.
| Total Output: | Single Channel: | Max 200 W |
| Triple Channels: |
Max 400 W (with DJI Power 1000) Max 300 W (with DJI Power 500) |
|
| Input Voltage: | 12-30 V, DC | |
| Max Input Current: | Single Channel: | 10 A |
| Triple Channels: | 16 A | |
| Operating Temperature: | -10° to 45° C (41° to 113° F) | |
| Compatibility: |
DJI Power 1000 DJI Power 500 |
|

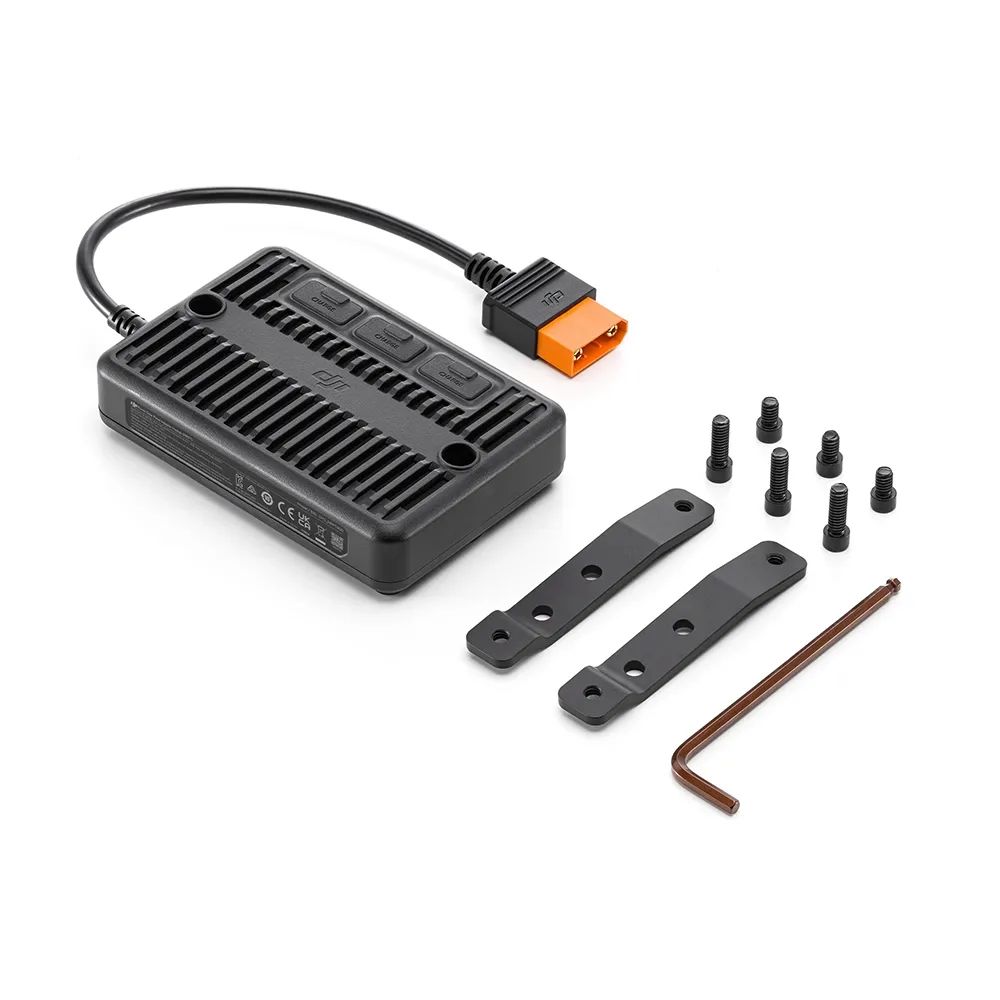

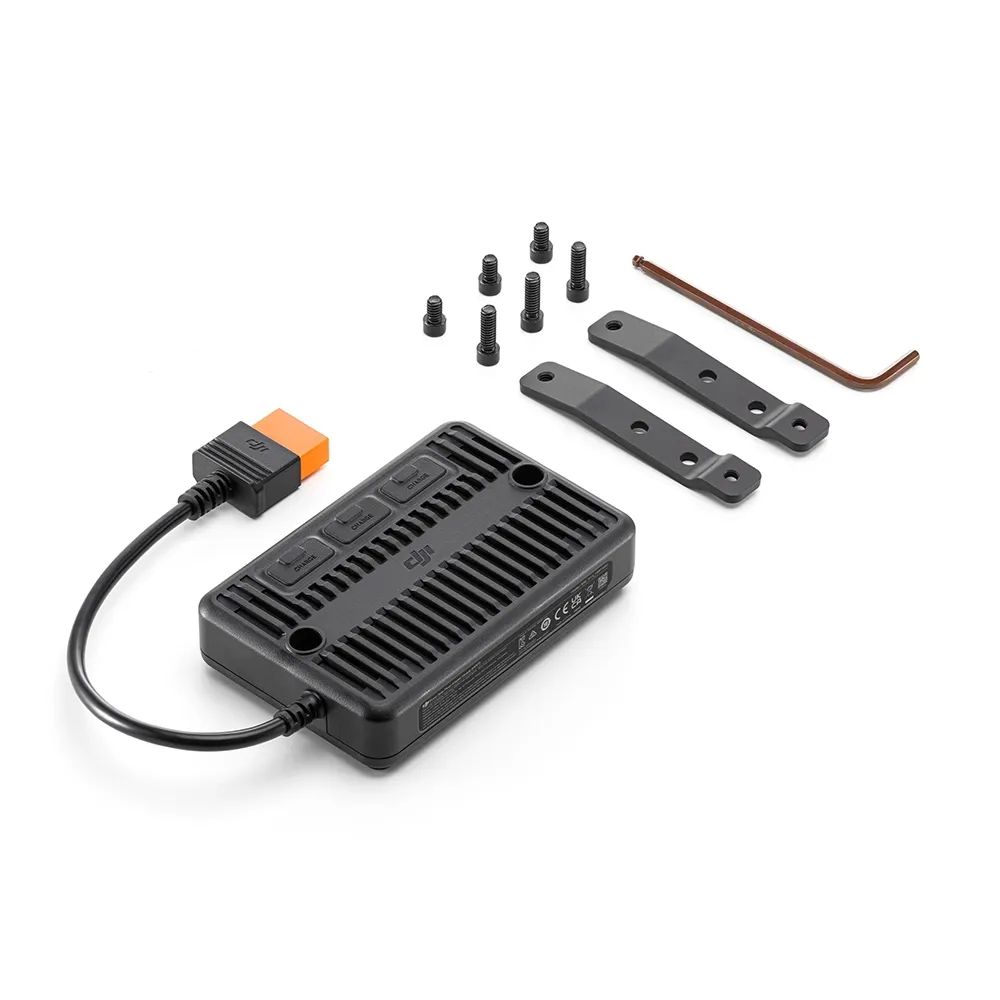

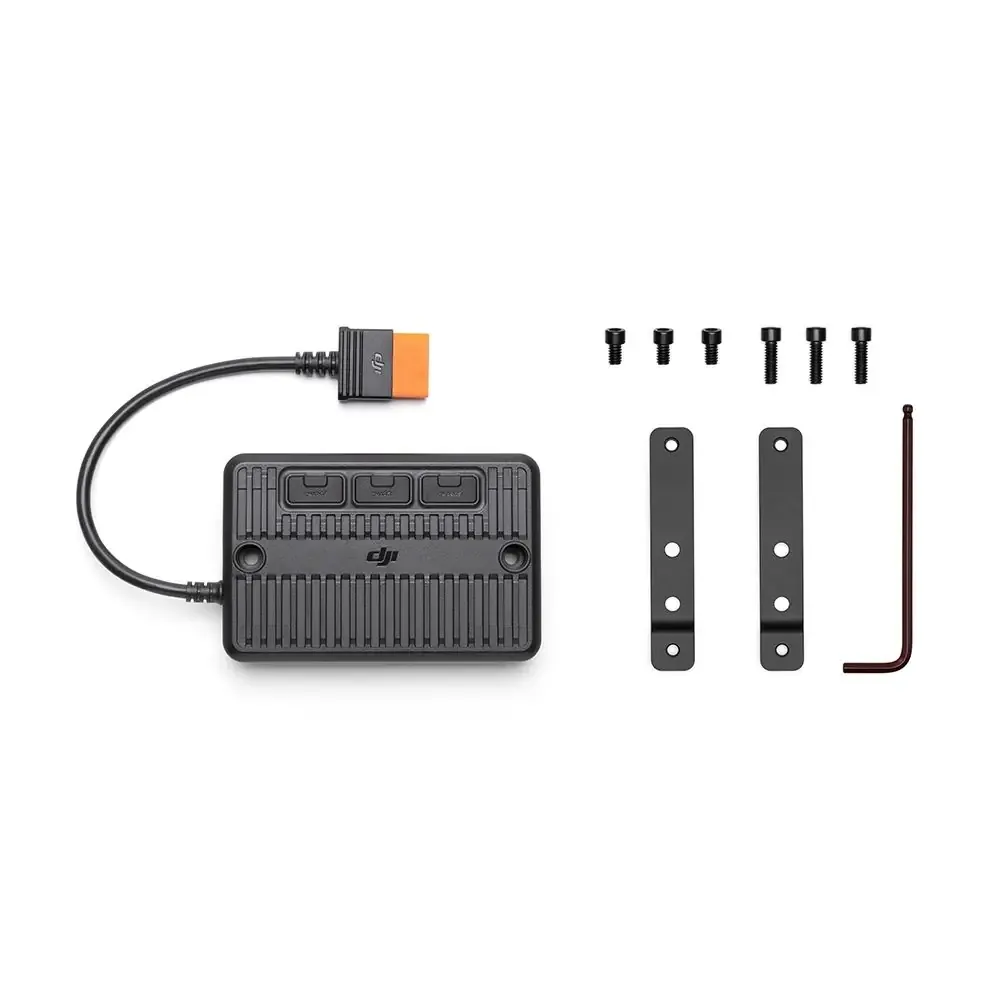

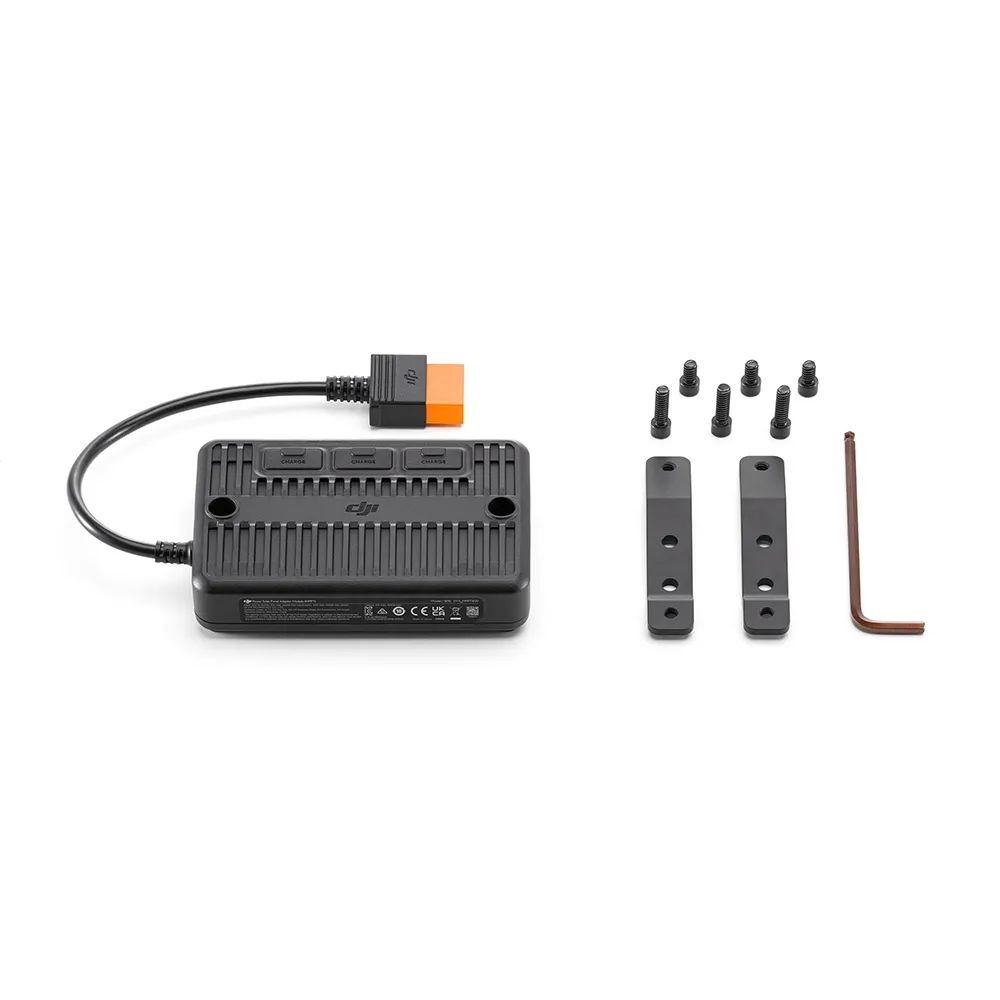

- DJI Power Solar Panel Adapter Module (MPPT) × 1
- Metal Heat Dissipation Bracket × 2
- Ball-End Hey Key × 1
- 10mm Screw × 3
- 20mm Screw × 3
"Best prices guaranteed! We’ll match or beat any legitimate prices."
Brand: DJI |
Code: DJIPOWERMOD
APN: 6941565969644 |
Supplier Code: CP.DY.00000041.01
Supplier Description:
Brand: DJI |
Code: DJIPOWERMOD
APN: 6941565969644 |
Supplier Code: CP.DY.00000041.01
Supplier Description:
At a glance
- Connect to up to three solar panels
- For eco-friendly solar recharging
- Supports up to 400 W
"Best prices guaranteed! We’ll match or beat any legitimate prices."
|
When a DJI Power-series power station is connected to the DJI Power Solar Panel Adapter Module (MPPT), users can link solar panels through the XT60 interface on the adapter panel for eco-friendly recharging of the DJI Power series. It is recommended to use the DJI Power-series power stations in conjunction with solar panels from the DJI-certified brand Zignes. If using solar panels from other brands, using the MPPT module and a conversion of the solar panel port to the XT60 interface are necessary to enable solar recharging for the DJI Power series. |
|
