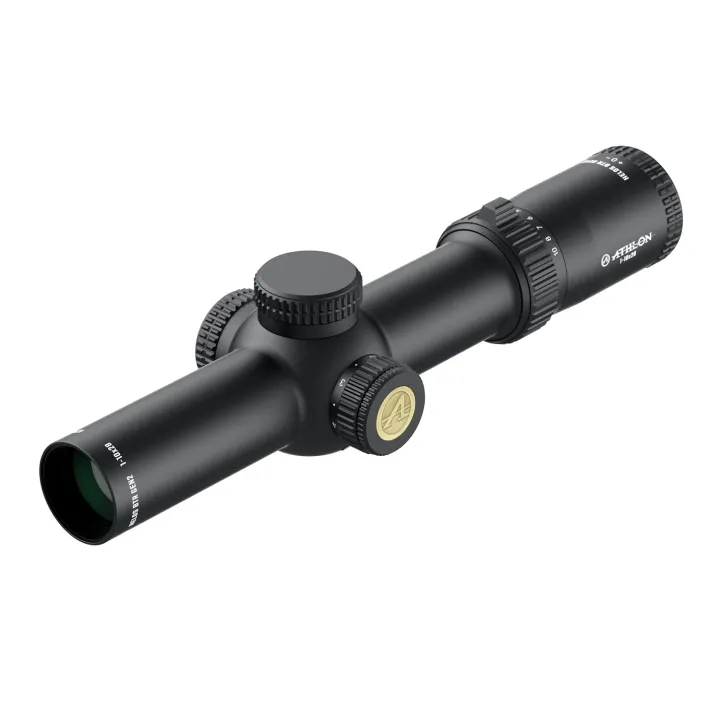

Athlon Helos BTR Gen2 1-10x28mm SFP ATMR4 34mm MOA Illuminated Riflescope **

Loading
  • Athlon Helos BTR Gen2 1-10x28mm SFP ATMR4 34mm MOA Illuminated Riflescope **
  • Athlon Helos BTR Gen2 1-10x28mm SFP ATMR4 34mm MOA Illuminated Riflescope **
  • Athlon Helos BTR Gen2 1-10x28mm SFP ATMR4 34mm MOA Illuminated Riflescope **
$1,190.00 HURRY! Only 1 unit left

  • 1-10x Optical Zoom.
  • Illuminated reticle for low-light conditions.
  • Minute of Angle (MOA) reticle, ideal for quick estimates for drop correction in the field.
  • Second Focal Plane (SFP) reticle.
  • Unconditional life time warranty against manufacturing and accidental damage.
  • Waterproof, fogproof and shockproof.

Illuminated Reticle

The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.

Etched Glass Reticle

Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil

Advanced Fully Multicoated

Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses

Aircraft Grade Aluminum

The aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.

Heat Treated One Piece Tube Construction

Heat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product

Waterproof

Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater

Fog proof

Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside

Shockproof

Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.

Argon Purged

Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability .

*Unconditional life time warranty to the original purchaser. This covers all manufacturing and accidental damage. It does not cover wilful or cosmetic damage. Items will be repaired or replaced under warranty.

Magnification

1-10

Objective Lens Diameter

28 mm

Reticle

ATMR4 Second Focal Plane (SFP) IR MOA, Glass Etched

Surface Finish

Matte

Lens Coating

Wide Band Fully Multi-Coated

Extra Coating

Xtra Protective Coating

Tube Material

Aircraft Grade Aluminium

Tube Diameter

34 mm

Eye Relief

3.2 inches

Field of View @100 yards

110-10 feet

Click Value

0.5 MOA

Adjustment range per rotation

44 MOA

Effective Elevation Adjustment

100 MOA

Total Windage Adjustment

100 MOA

Turret Style

Capped

Parallax Adjustment

100

Purging Material

Argon

Length

10.3 inches

Weight

18.3 ounces

Brochures
AT214103 - Brochure
Product Manuals
Athlon Helos BTR Gen2 1-10x28mm SFP ATMR4 34mm MOA Illuminated Riflescope ** - Product Manual

Related Categories 30mm Tube Diameter Riflescopes Illuminated Reticles (IR) 3-15x Magnification Riflescopes Target & Tactical Scopes Second Focal Plane (SFP) Minute of Angle (MOA) Reticle Target - Illuminated Reticle 34mm Tube Diameter Riflescopes Second Focal Plane

Brand: Athlon Optics | Code: AT214103
APN: 813869022171 | Supplier Code: 214103
Supplier Description: Helos BTR GEN2 1-10x28 ATMR4

Brand: Athlon Optics | Code: AT214103
APN: 813869022171 | Supplier Code: 214103
Supplier Description: Helos BTR GEN2 1-10x28 ATMR4

This product may contain or use a button cell battery
If swallowed, a lithium button battery can cause severe or fatal injuries within 2 hours. Keep batteries out of reach of children. If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention.
