Athlon Helos BTR GEN 2 6-24x56mm FFP APLR6 34mm MOA Illuminated Riflescope
Magnification |
6-24 |
Objective Lens Diameter |
56 mm |

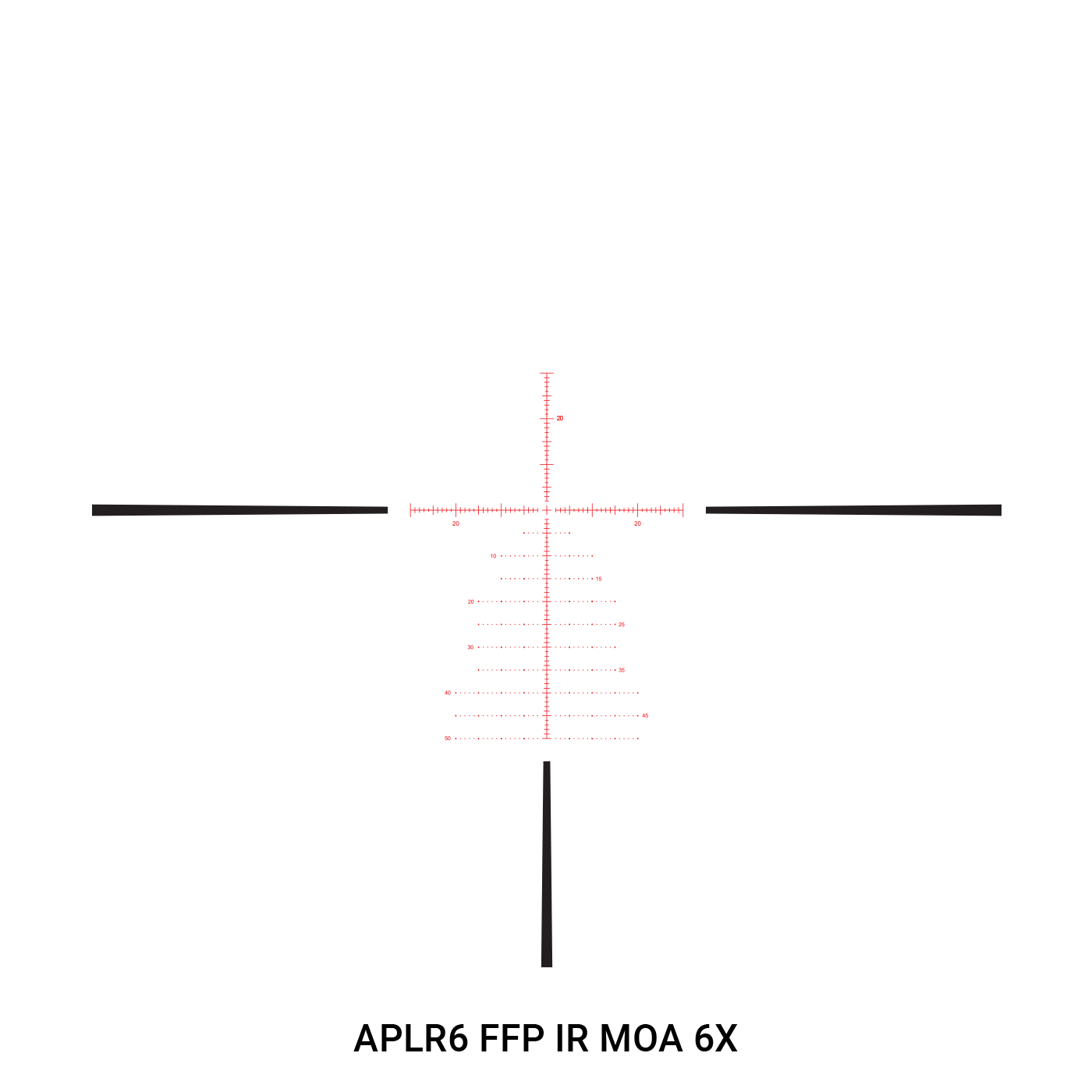

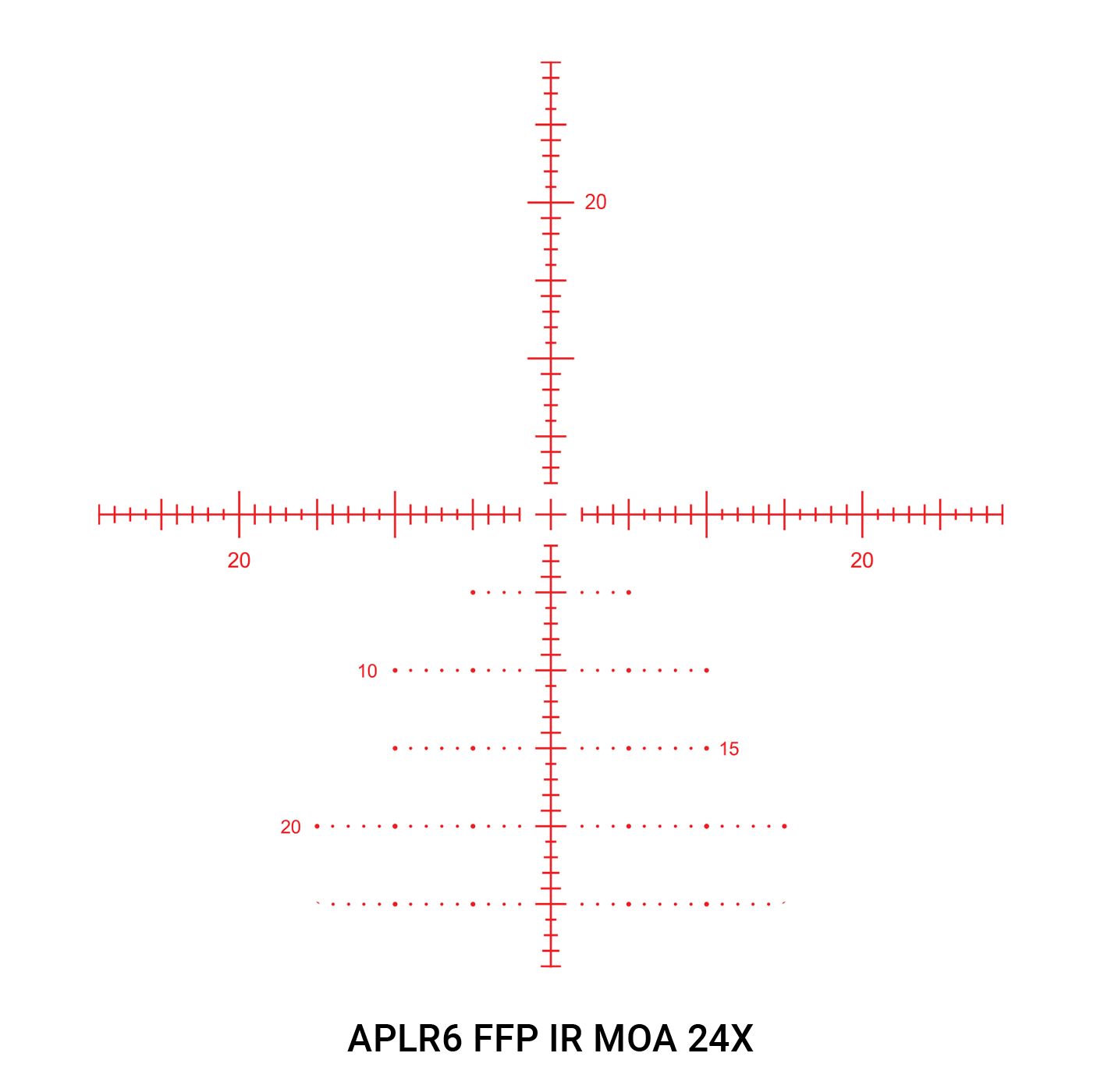

Reticle |
APLR6 FFP IR MOA, Glass Etched |
Surface Finish |
Matte |
Lens Coating |
Wide Band Fully Multicoated |
Extra Coating |
Xtra Protective Coating |
Tube Material |
Aircraft Grade Aluminium |
Tube Diameter |
34 mm |
Eye Relief |
3.7 inches |
Field of View @100 yards |
19.9-5.12 feet |
Click Value |
0.25 MOA |
Adjustment range per rotation |
25MOA |
Total Elevation Adjustment |
100MOA |
Total Windage Adjustment |
80MOA |
Turret Style |
Exposed |
Parallax Adjustment |
Side Focus – 10 yards to infinity |
Purging Material |
Argon |
Length |
14.3 inches |
Weight |
34.5 ounces |
Brochures | |
---|---|
AT214113 - Brochure | Product Manuals |
Athlon Helos BTR GEN 2 6-24x56mm FFP APLR6 34mm MOA Illuminated Riflescope - Product Manual |
Brand: Athlon Optics |
Code: AT214113
APN: 813869022201 |
Supplier Code: 214113
Brand: Athlon Optics |
Code: AT214113
APN: 813869022201 |
Supplier Code: 214113
