Athlon Helos BTR GEN 2 2-12x42mm FFP AHMR2 30mm MIL Illuminated Riflescope
Magnification |
2-12 |
Objective Lens Diameter |
42 mm |

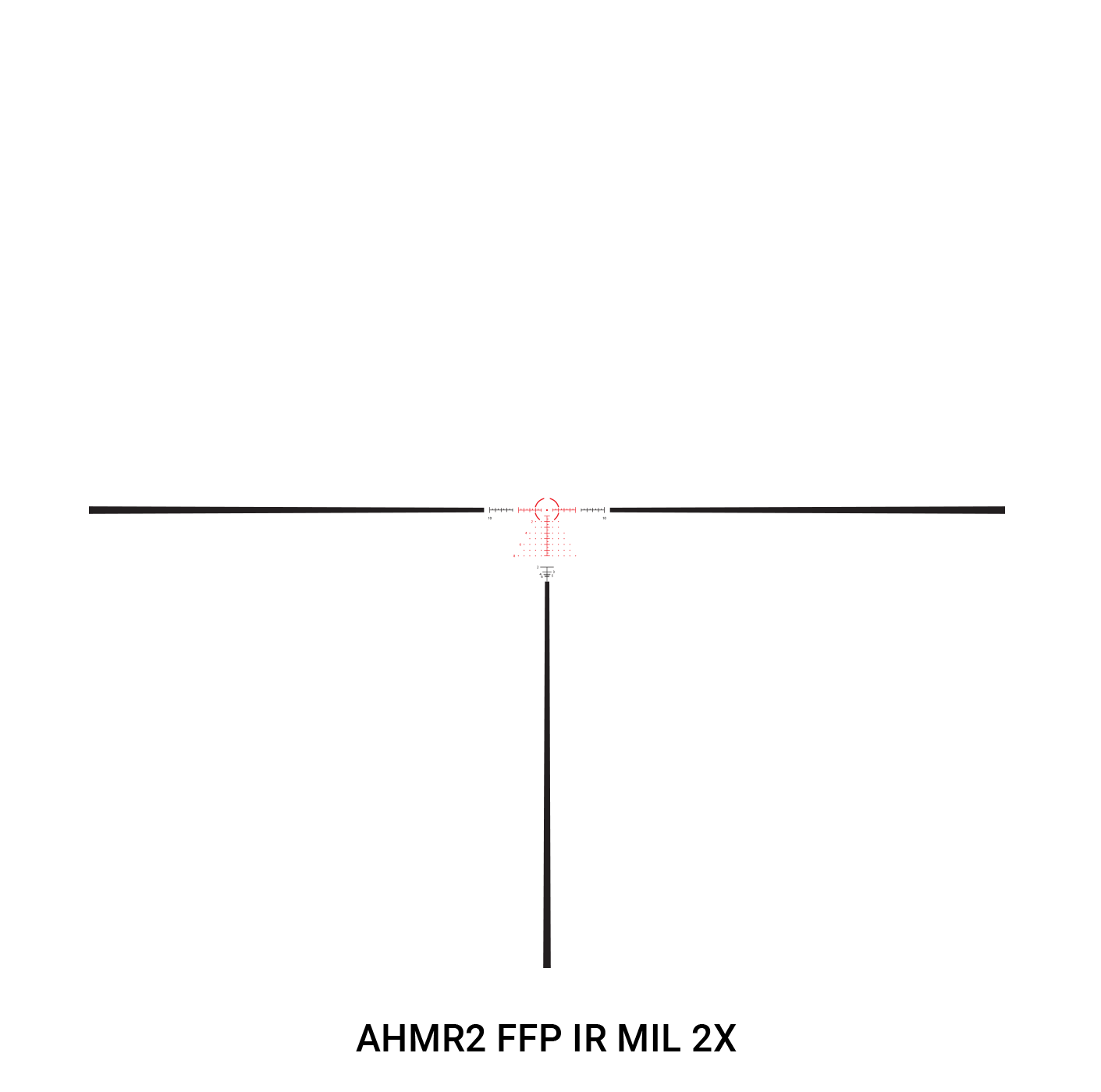

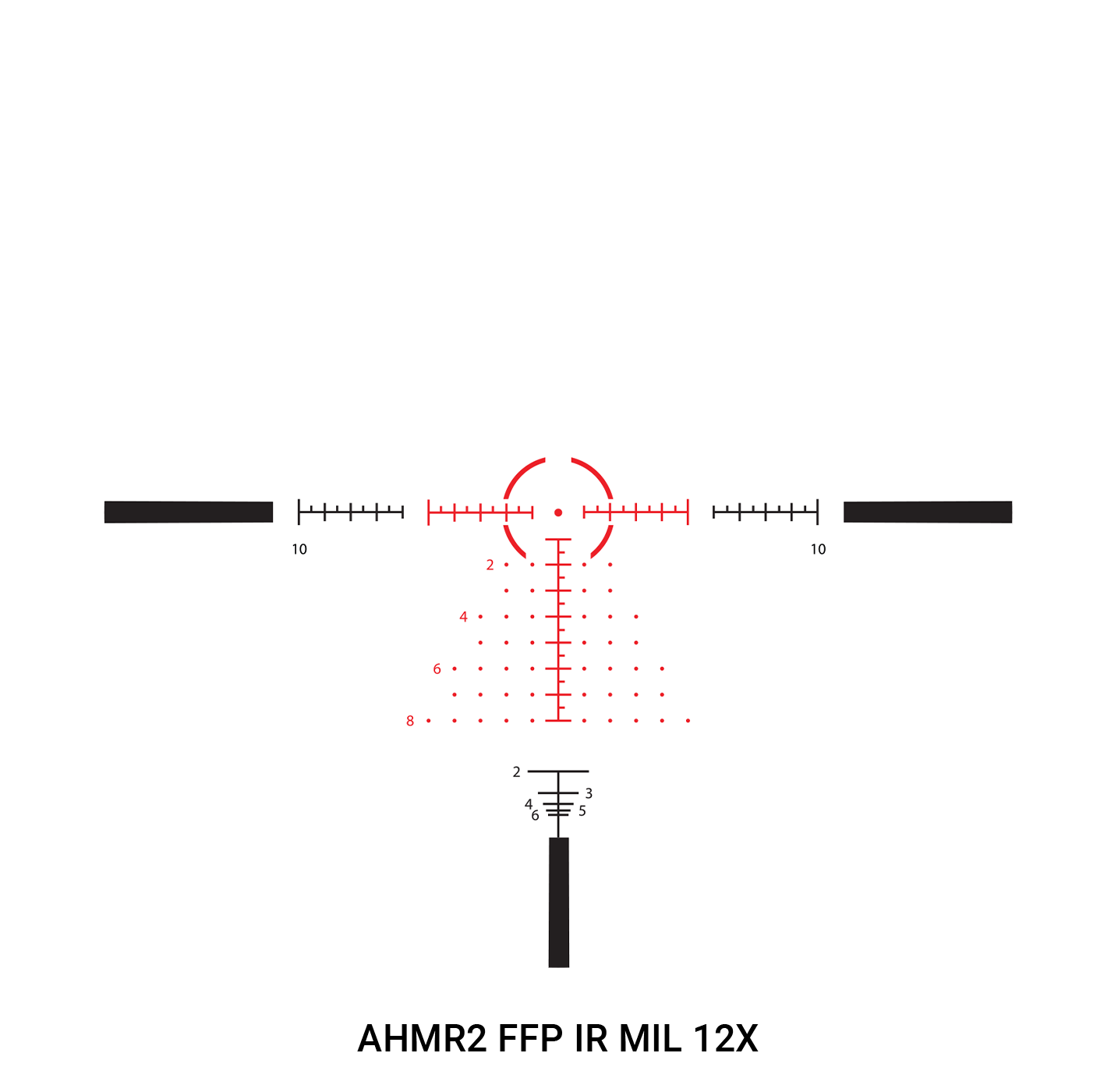

Reticle |
AHMR2 FFP IR MIL, Glass Etched |
Surface Finish |
Matte |
Lens Coating |
Wide Band Fully Multi-Coated |
Extra Coating |
Xtra Protective Coating |
Tube Material |
Aircraft Grade Aluminium |
Tube Diameter |
30 mm |
Eye Relief |
3.6 inches |
Field of View @100 yards |
55.7-9.6 feet |
Click Value |
0.1 MIL |
Adjustment range per rotation |
10MIL |
Total Elevation Adjustment |
32MIL |
Total Windage Adjustment |
25MIL |
Turret Style |
Exposed |
Parallax Adjustment |
Side Focus – 10 yards to infinity |
Purging Material |
Argon |
Length |
11.8 inches |
Weight |
25.4 ounces |
Brochures | |
---|---|
AT214105 - Brochure | Product Manuals |
Athlon Helos BTR GEN 2 2-12x42mm FFP AHMR2 30mm MIL Illuminated Riflescope - Product Manual |
Brand: Athlon Optics |
Code: AT214105
APN: 813869022225 |
Supplier Code: 214105
Brand: Athlon Optics |
Code: AT214105
APN: 813869022225 |
Supplier Code: 214105
This product may contain or use a button cell battery
If swallowed, a lithium button battery can
cause severe or fatal injuries within 2 hours.
Keep batteries out of reach of children.
If you think batteries may have been
swallowed or placed inside any part of the
body, seek immediate medical attention.
