Athlon Helos BTR GEN 2 4-20x50mm FFP APRS6 30mm MIL Illuminated Riflescope
- Unconditional life time warranty against manufacturing and accidental damage.
- Advanced fully multi-coated lenses
- XPL protective coating
- Argon purged
- Precision zero stop
- Locking turrets
- High precision erector system
- Aircraft grade aluminum tube
- Illuminated reticle
- Etched glass reticle
- Waterproof
- Fog proof
- Shockproof
- One piece tube construction


First Focal Plane Reticle
First focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out. These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.
Locking Turrets
Locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to next during your competition or putting them away for your next hunting trip.
Illuminated Reticle
The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass Reticle
Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Advanced Fully Multicoated
Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
Precision Zero Stop
The system allows you to lock down your zero position and dial back to it with a sharp and precise stop right at your zero mark even you are turning it in pitch-dark.
Heat Treated One Piece Tube Construction
Heat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof
Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof
Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside
Shockproof
Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purged
Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability .
*Unconditional life time warranty to the original purchaser. This covers all manufacturing and accidental damage. It does not cover wilful or cosmetic damage. Items will be repaired or replaced under warranty.
|
Magnification |
4-20 |
|
Objective Lens Diameter |
50 mm |
|

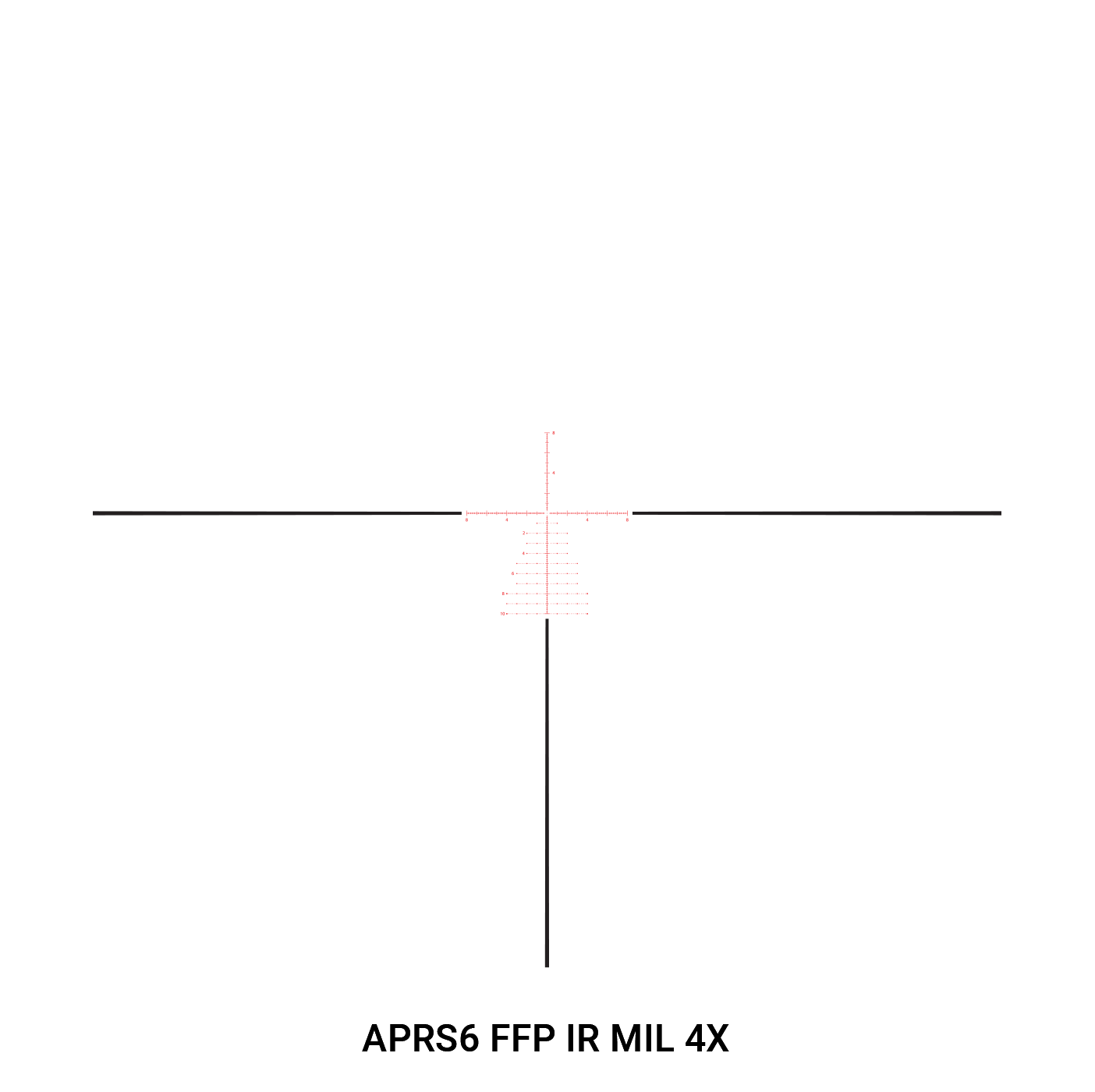

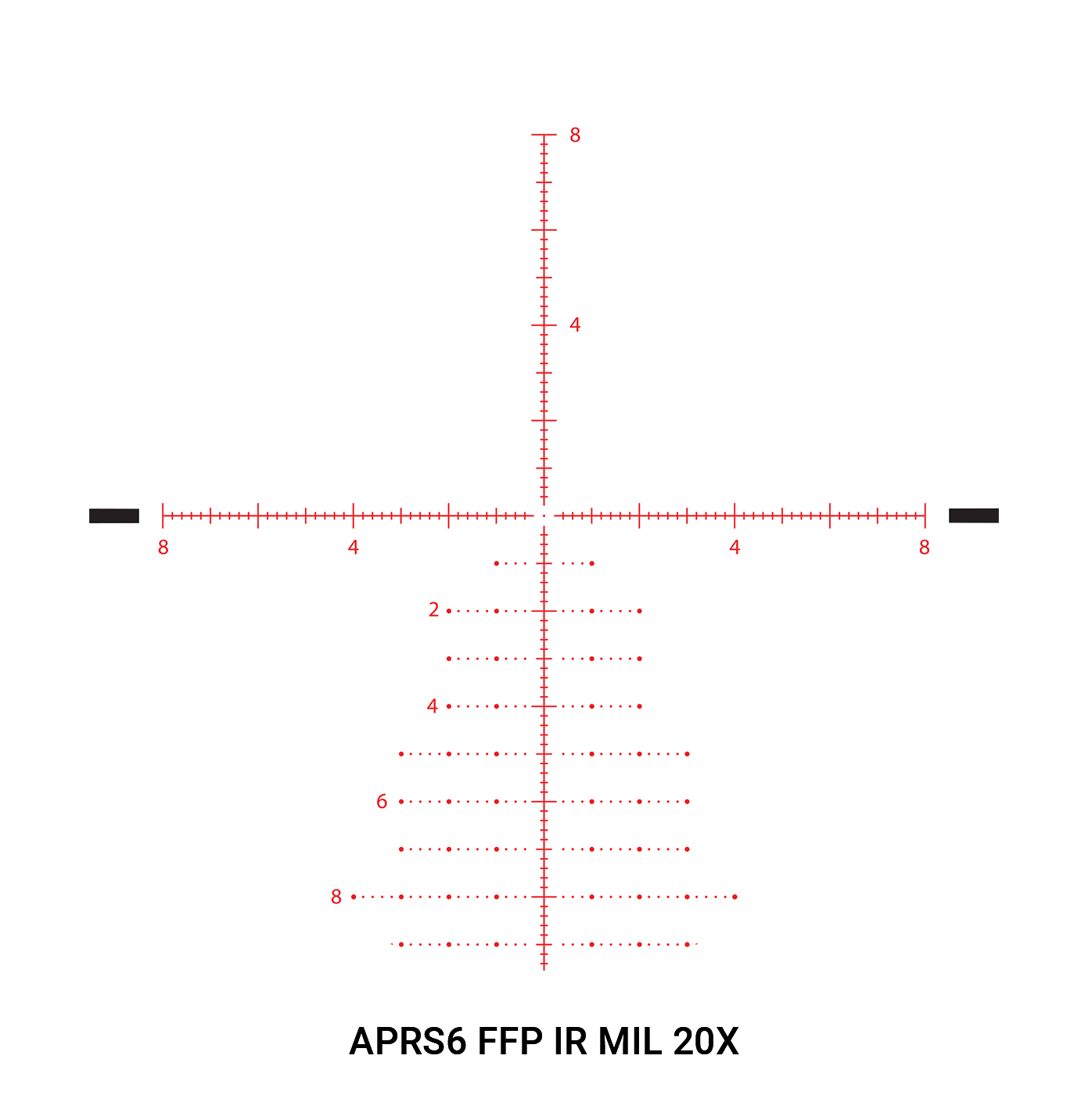

Reticle |
APRS6 FFP IR MIL, Glass Etched |
|
Surface Finish |
Matte |
|
Lens Coating |
Wide Band Fully Multi-Coated |
|
Extra Coating |
Xtra Protective Coating |
|
Tube Material |
Aircraft Grade Aluminium |
|
Tube Diameter |
30 mm |
|
Eye Relief |
9.14cm |
|
Field of View @100 yards |
27.9-5.6 feet |
|
Click Value |
0.1 MIL |
|
Adjustment range per rotation |
10MIL |
|
Total Elevation Adjustment |
29MIL |
|
Total Windage Adjustment |
25MIL |
|
Turret Style |
Exposed |
|
Parallax Adjustment |
Side Focus – 10 yards to infinity |
|
Purging Material |
Argon |
|
Length |
33.8cm |
|
Weight |
782g |
| Brochures | |
|---|---|
| AT214109 - Brochure | Product Manuals |
| Athlon Helos BTR GEN 2 4-20x50mm FFP APRS6 30mm MIL Illuminated Riflescope - Product Manual |
Brand: Athlon Optics |
Code: AT214109
APN: 813869022195 |
Supplier Code: 214109
Brand: Athlon Optics |
Code: AT214109
APN: 813869022195 |
Supplier Code: 214109
