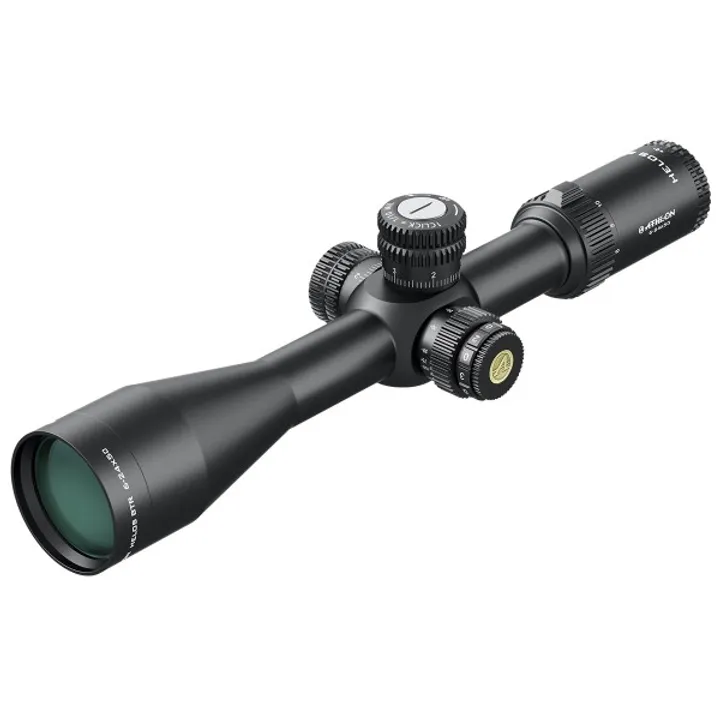

Athlon Helos BTR GEN 2 6-24x56mm FFP APRS6 34mm MIL Illuminated Riflescope
Magnification |
6-24 |
Objective Lens Diameter |
56 mm |

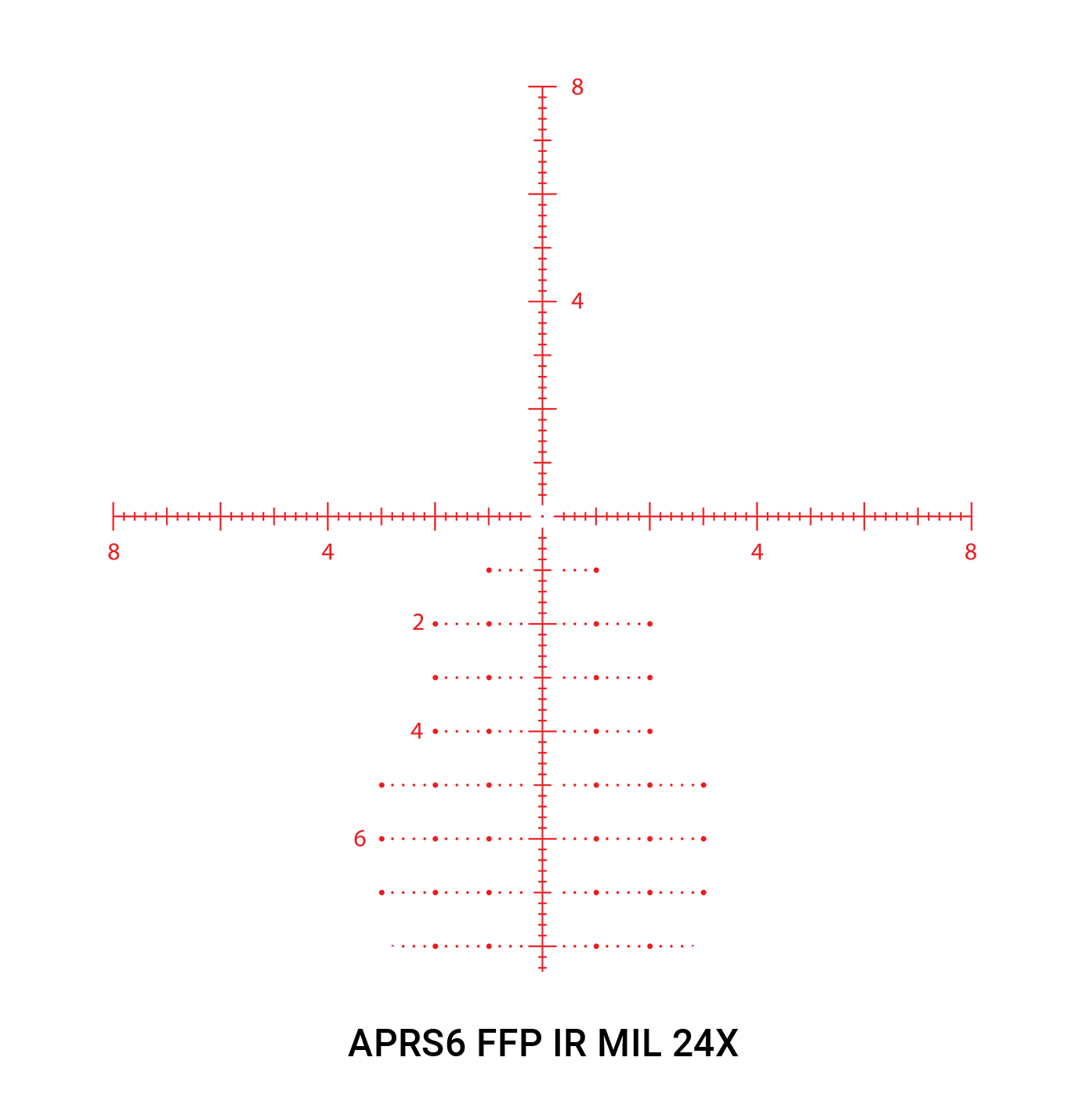

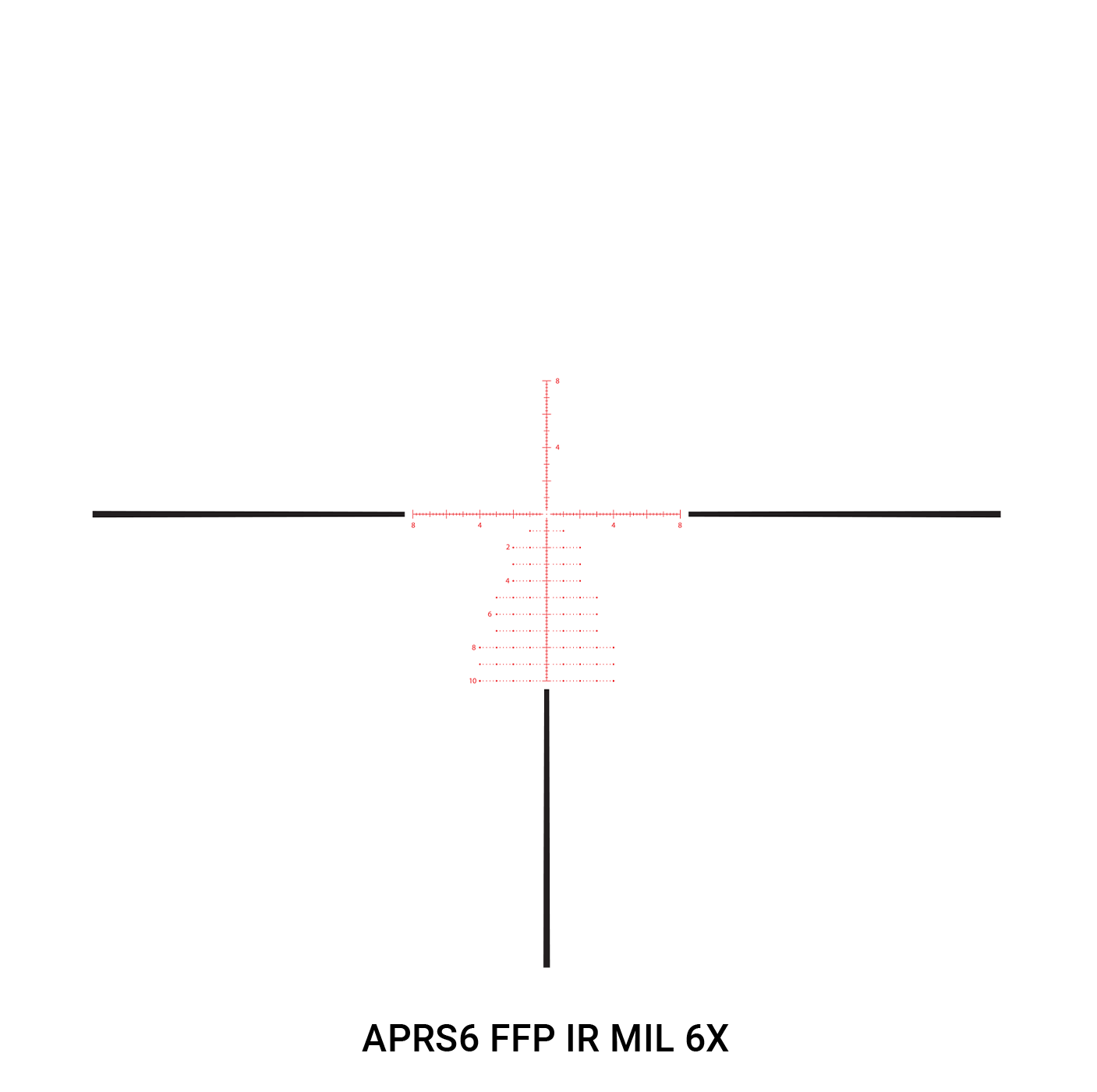

Reticle |
APRS6 FFP IR MIL, Glass Etched |
Surface Finish |
Matte |
Lens Coating |
Wide Band Fully Multi-Coated |
Extra Coating |
Xtra Protective Coating |
Tube Material |
Aircraft Grade Aluminium |
Tube Diameter |
34 mm |
Eye Relief |
3.7 inches |
Field of View @100 yards |
19.9-5.12 feet |
Click Value |
0.1 MIL |
Adjustment range per rotation |
10MIL |
Total Elevation Adjustment |
29MIL |
Total Windage Adjustment |
25MIL |
Turret Style |
Exposed |
Parallax Adjustment |
Side Focus – 10 yards to infinity |
Purging Material |
Argon |
Length |
14.3 inches |
Weight |
34.5 ounces |
Brochures | |
---|---|
AT214114 - Brochure | Product Manuals |
Athlon Helos BTR GEN 2 6-24x56mm FFP APRS6 34mm MIL Illuminated Riflescope - Product Manual |
Brand: Athlon Optics |
Code: AT214114
APN: 813869022218 |
Supplier Code: 214114
Brand: Athlon Optics |
Code: AT214114
APN: 813869022218 |
Supplier Code: 214114
